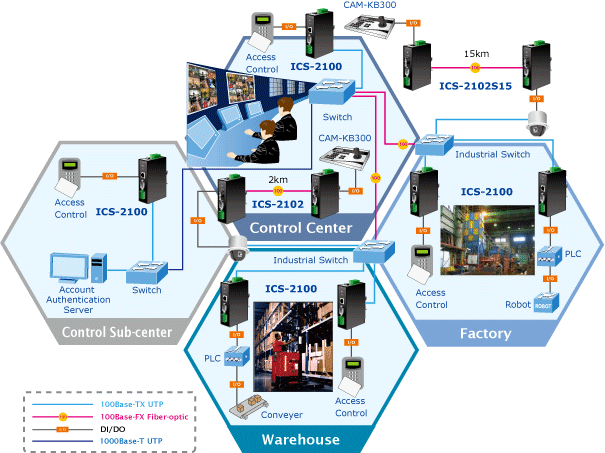

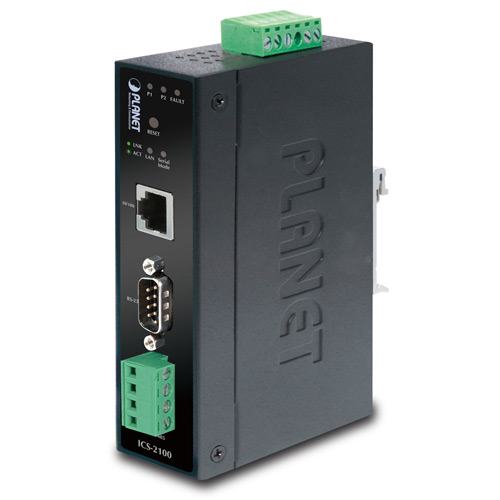

| Serial Port |
| 接口 |
RS-232 x 1
RS-422 / RS-485 x 1
|
| 连接器 |
DB9 for RS-232
Terminal block for RS-422 / RS-485
|
| 波特率 (Data Rate) |
300bps to 921600bps |
| 速率 |
5,6,7,8 |
| 奇偶校验类型 |
1, 1.5/2 |
| 停止位 |
Odd, Even, None, Space, Mark |
| 流量控制 |
Hardware, None |
| 信号 |
RS-232: DCD, RxD, TxD, GND, RI
RS-422: Tx+, Tx-, Rx+, Rx-
RS-485: Data A (+), Data B (-)
|
| Fast Ethernet Port |
| 标准 |
10/100Base-TX |
| 连接 |
RJ-45 |
| 距离 |
100m |
| 线缆 |
Twisted-pair |
| Hardware |
| LED指示灯 |
System: Power 1, Power 2, Fault

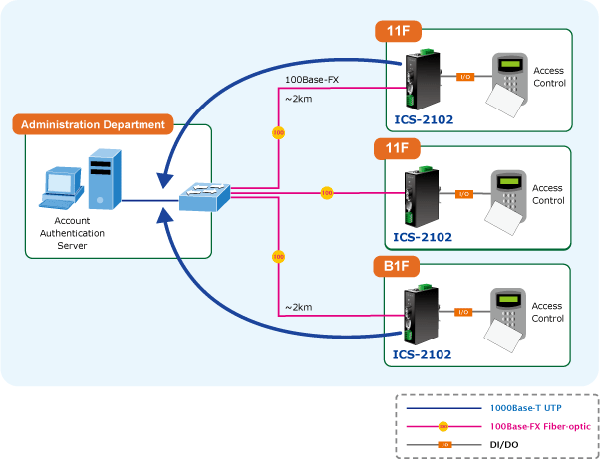

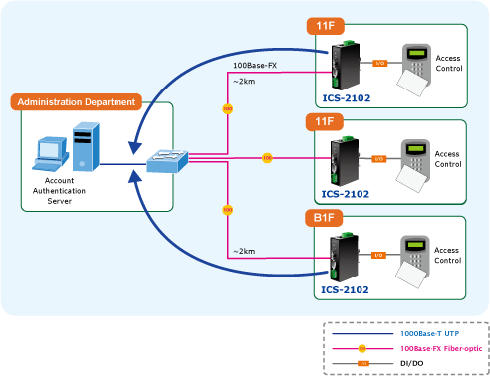

TP or Fiber Port: Link / Active
Serial Port: Serial port mode, RS-232, RS-422 or RS-485
|
| 管理 |
Web Management
PLANET Smart Discovery Utility |
| 虚拟COM工具 平台支持 |
Windows Base Only:
Windows XP
Windows Server 2003
Windows 7
Windows Server 2008
Windows 8 (Must install the latest version of WinPcap)
Windows Server 2012 (Must install the latest version of WinPcap)
|
| 工作模式 |

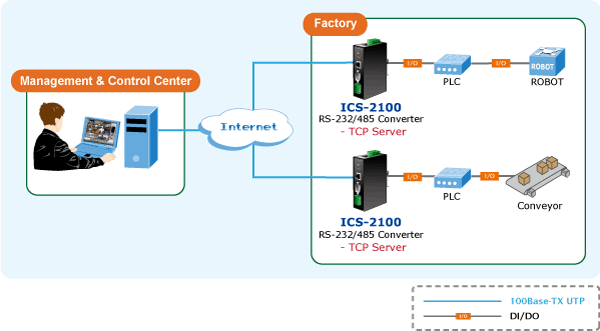

TCP Server
TCP Client
UDP Client
Virtual COM
Telnet Server

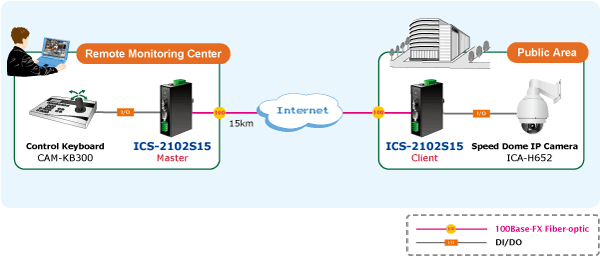

Pair Connection – Remote (Slave)
Pair Connection – Local (Master)
|
| 外形尺寸 |
135 x 97 x 32 mm |
| 重量 |
425g |
| 电源支持 |
12~48 V DC, Redundant power with polarity reverse protection function |
| 电源功耗 |
10.1 watts / 34.44 BTU (max) |
| 安装 |
DIN rail kit and wall mount ear |
| 告警 |
Provides one relay output for power failure; alarm relay current carry ability: 1A @ DC 24V |
| 材料 |
Metal |
| 环境 |
Operating Temperature: -10~60 degrees C
Storage Temperature: -20~75 degrees C
Operating Humidity: 10~90% RH
Storage Humidity: 5~90% RH
|
| 法规遵从 |
FCC Class A, CE Certification Class A |
| 标准遵从 |
IEEE 802.3 10Base-T,
IEEE 802.3u 100Base-TX
EIA/TIA RS-232/422/485
|
| 安规认证 |
RoHS |
| 稳定性测试 |
IEC60068-2-32(Free Fall),
IEC60068-2-27(Shock),
IEC60068-2-6(Vibration)
|
| 注意 |
Reset Button on the front panel for resetting to factory default |
