MH-3400

Gigabit Multi-Homing VPN Security Router

概述
应用场景
功能特性
产品规格
下载
相关产品

Appropriate Network Security Solutions

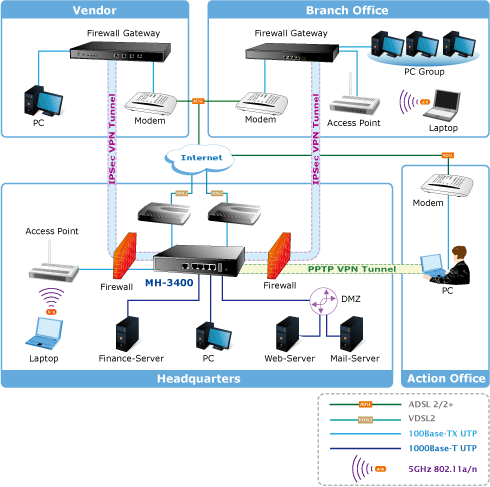

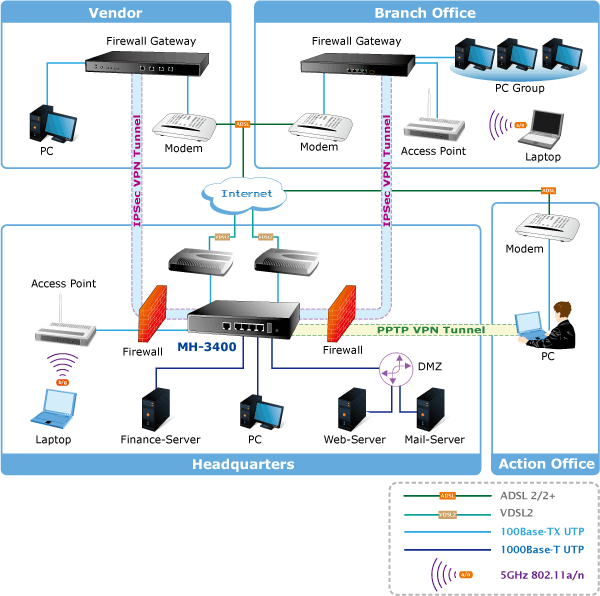

As Internet becomes essential for business, the crucial solution to preventing your Internet connection from failure is to have more than one connection. PLANET MH-3400 is a Gigabit Multi-Homing VPN Security Router ideal to help the SMBs increase the broadband network performance and reduce the risks of potential shutdown if one of the Internet connections fails. The MH-3400, supporting Multi-Subnet interface with Multi-VLAN function, allows users to easily divide network into different sections based on applications, such as VoIP, web or ftp server, or user groups.

Cost-effective IPv6 Managed Router Solution for SMBs
Faced with the increasingly large number of IP cameras and Wireless APs being installed and deployed in all kinds of applications, more and more network equipment comes with IPv6 protocol for next generation networking. The MH-3400 supports both the original IPv4 network structure as well as the new IPv6 protocol with easy and friendly management interfaces and plenty of management functions included.

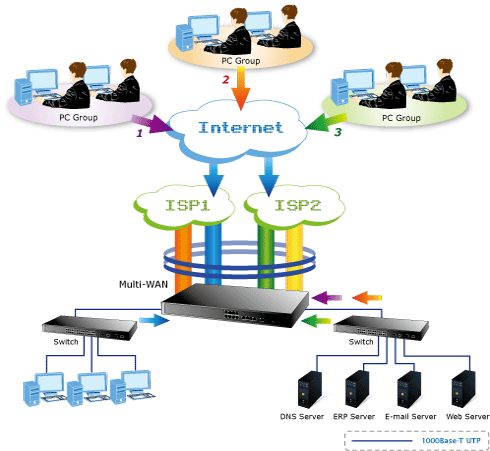

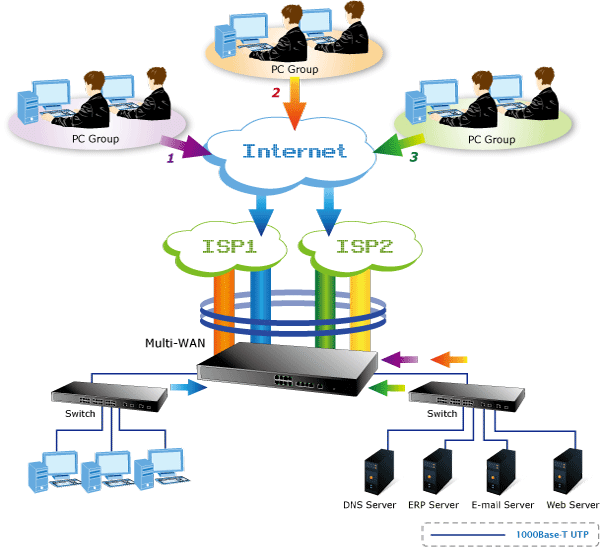

Improving Network Efficiency with Load Balancing

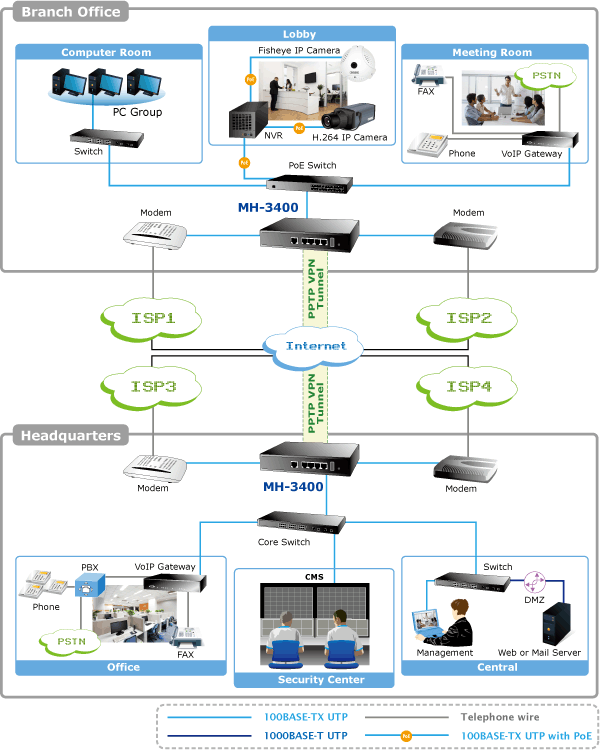

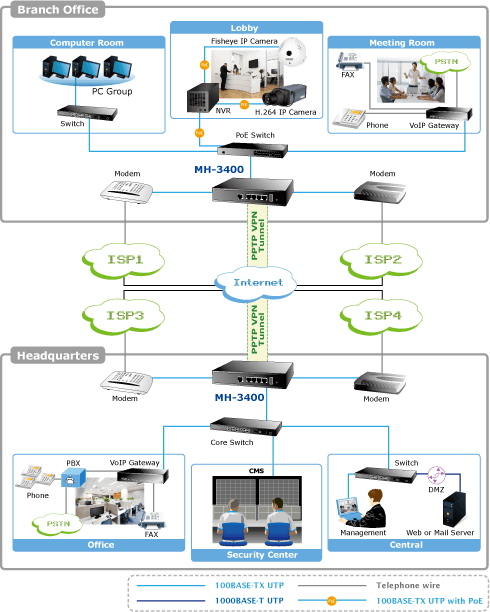

Moreover, the MH-3400 allows you to perform load-balancing by distributing the traffic through three or four WAN connections. In Outbound Load Balancing, the network sessions are assigned based on the user configurable load balancing mode,including Auto Load Balance,Unbinding WAN Balance and Strategy Routing. Users can also configure which IP or TCP/UDP type of traffic use for WAN port to connect. The Inbound Load Balancing is for enterprise�s internal server. The Inbound Load Balancing can reduce the server loading and the risks of system crash so that the MH-3400 helps to improve the server working efficiency.

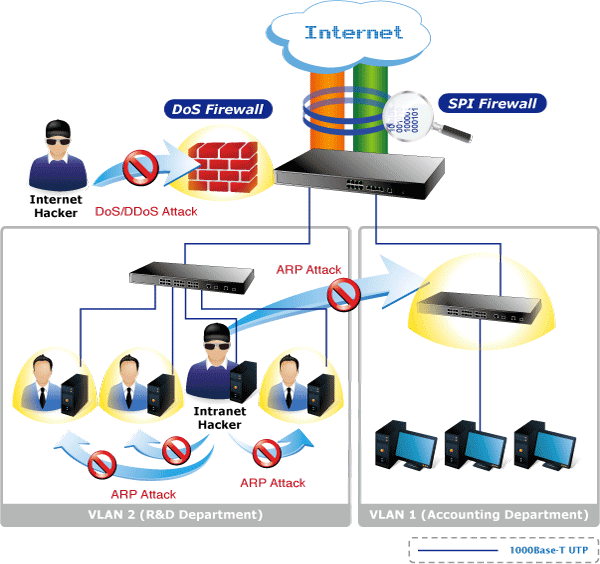

Strong Protection for Network Security

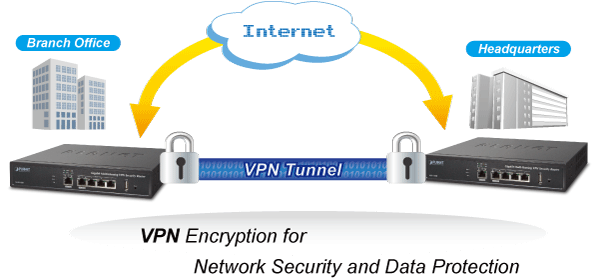

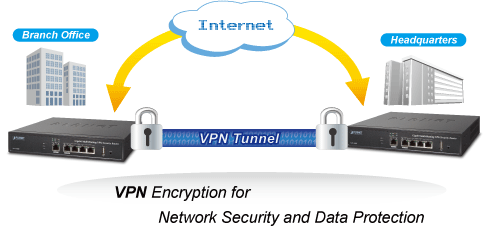

In addition to a multi-homing device, the MH-3400 provides a complete security solution in one single box. The policy-based firewall, content filtering functions and VPN connectivity with 3DES and AES encryption make it a perfect product for your network security. No more complicated connections and settings for integrating different security products on the network are required.

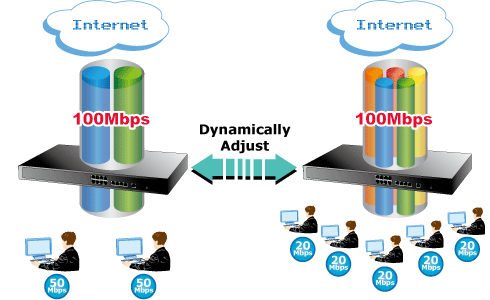

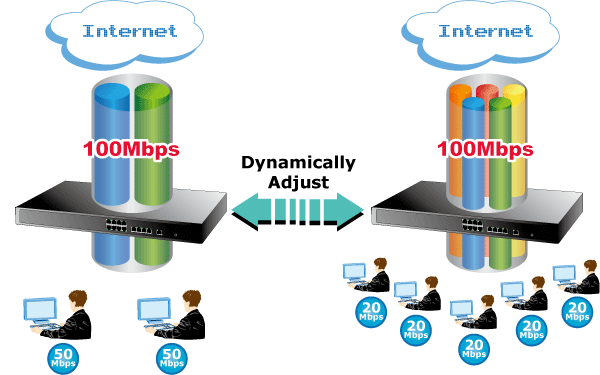

QoS Bandwidth Management
Besides offering easy yet powerful bandwidth management functions, the MH-3400 features Smart QoS with dynamic bandwidth management to automatically control P2P, video downloading and other bandwidth hogging in order to avoid bandwidth insufficiency. It also helps the network administrators better allocate network resources based on business priorities, as well as to shape and control bandwidth usage by prioritizing different persons/groups or applications in bandwidth use.

硬件
以太网	LAN 1~2 x 10/100/1000Mbps RJ-45, configurable with LAN 1 (Mirror Port) WAN 3~4 x 10/100/1000Mbps RJ-45, configurable with WAN 4 (WAN 4 / LAN2 / DMZ) DMZ 1 x 10/100/1000Mbps RJ-45
按钮	Reset 1 x Reset button for reset to factory default setting Power 1 x Power on/off switch
USB	1 x USB 2.0 Host
操作环境	Temperature: 0 ~ 50 degrees C Relative Humidity: 10~85% (non-condensing)
尺寸 (W x D x H)	240 x160 x 44 mm

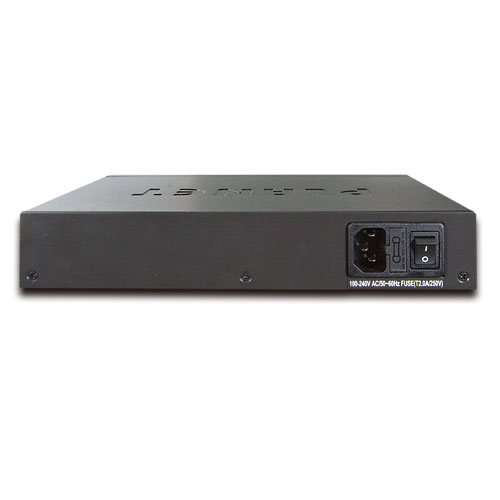

电源	100~240 VAC, 50~60 Hz, max 0.5A
监管	FCC Class B, CE
软件
多WAN功能	Inbound / Outbound Load Balance: by session and by IP Protocol Binding Network Service Detection
路由	Dynamic Route RIP v1/v2 Static Route
系统性能	Concurrent session: 50000 Firewall performance: 1Gbps Corporation size: SMB (clients 200~250) 3DES performance: 154Mbps
带宽管理	Session Limit Smart QoS Port-based QoS QoS Schedule
防火墙安全	NAT One-to-One NAT Multiple-to-One NAT Stateful Packet Inspection (SPI) Firewall Denial of Service (DoS) prevention IP & Port Filtering Block Website by Keyword, Content Filter Firewall Detection: Ping of Death, SYN Flooding, Land attack, IP Spoofing Email Alert for Hacker Attack IP&MAC Binding DMZ Host Prevents ARP Attack on LAN
网络	Configurable DMZ DHCP Server (supports class C) Multiple DHCP Server (supports 4 sets of Class C) PPPoE / Static IP / DHCP Client LAN MAC Clone Multiple Subnet (Max. 30 sets) Protocol: TCP /IP, ARP, ICMP, FTP/TFTP, IPv4, IPv6 NAT with popular ALG support Port Forwarding DNS Relay DDNS: supports DynDNS, 3322, No-IP Password protected configuration or management sessions for web access Port Management � Speed / Duplex / Auto Negotiation VLAN Tagging (802.1Q) / Port VLAN Transparent Bridge
USB特性	3G/3.5G Internet Access Automatic failover / load balancing between 3G and WAN Auto / manual throughput and time calculation mechanism for cost or dial-on demand (Cellular cost Control) Signal strength display on front panel Throughput measurement APN and PIN code support
网络管理	Comprehensive web-based management and policy setting SNMP v1/v2c (IPv4 only) Monitoring, logging, and alarms of system activities Firmware upgrade through Web browser
支持VPN	VPN Tunnel 200 IPSec VPN Tunnels / 60 PPTP VPN Tunnels. IPSec VPN IPSec H/W acceleration Supports up to 2 Groups of VPN Friendly VPN Tunnel Management IKE: Pre-Shared keys IPSec Encryption DES / 3DES / AES128 / AES192 / AES256 IPSec Authentication MD5 / SHA1 PMTU NAT Traversal (NAT-T) Connect on Demand DPD detection VPN Hub IP by DNS resolved View Log IPSec, PPTP Passthrough

订购信息
MH-3400	Gigabit Multi-Homing VPN Security Router
