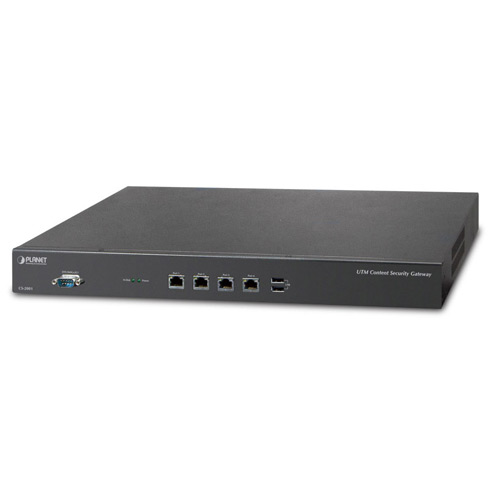

CS-2001

UTM Content Security Gateway

概述

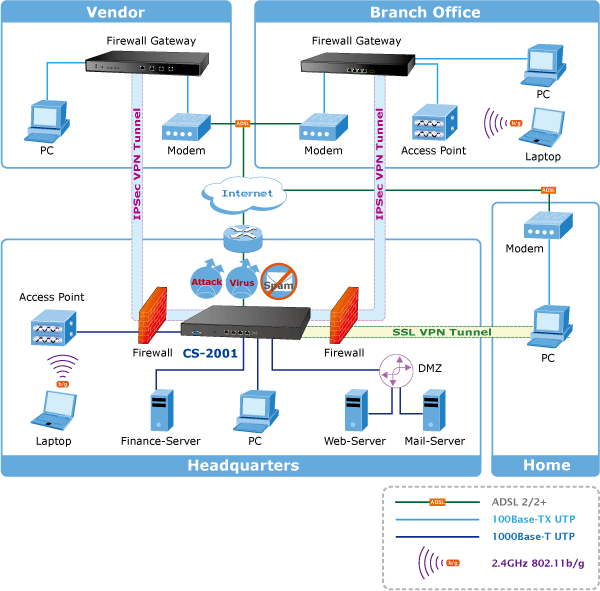

应用场景
功能特性
产品规格
下载
相关产品

The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing; however, it also brings network security issues. The request of information security becomes the primary concern for the enterprises. To fulfill the demand, PLANET has come out with the CS-2001 UTM Content Security Gateway, the next generation of the CS-2000, to support the enterprises to build up the secure network protection. For further IP compatibility, it supports IPv6 as well.

The CS-2001 adopts heuristic analysis to filter spam emails and viruses, and its auto-training system can increase the spam emails identification. The CS-2001 has a built-in 500GB hard disk to store the spam email in quarantine. The anti-virus application has dual virus scan engines - Clam and Sophos to effectively detect viruses, worms and other threats from emails and Internet. Moreover, it helps the administrators to monitor the email status easily via email reports daily, weekly, monthly and yearly.

Besides filtering spam and virus emails, the CS-2001 presents the IDP (Intrusion Detection and Prevention) and firewall functions to defense hackers and blaster attacks from Internet or Intranet. The comprehensive functions in one device provide enterprises with security solutions for better secure environment than ever.

The CS-2001 supports most of the popular security features including Content Blocking to block specific URL, Scripts, IM/P2P program, Authentication, IPSec, PPTP VPN server/Client, SSL VPN, QoS, High Availability, Inbound Load-Balancing and more. Furthermore, it provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user defined interfaces flexibly fulfill the network requirement nowadays, and the multiple WAN interfaces enable the CS-2001 to support Outbound/Inbound load balance and WAN fail-over features. As the result, the VPN not only can configure Trunk mode but also provide VPN fail-over and load balance features which is a VPN redundant mechanism to keep the VPN always alive.

� All Gigabit user defined Interface:
The CS-2001 not only supports all Gigabit Ethernet interfaces to provide higher performance but is also able to be defined the interface role for your network environment.

� IPv6:
IPv6 is designed to success the IPv4 version. The CS-2001 implements the new IP version for further compatibility of network environment.

� Anti-Spam Filtering:
Multiple defense layers (Spam Fingerprint, Blacklist & Whitelist,Bayesian Filtering, Spam Signature, Graylist, Checking sender account and IP address in RBL), and Heuristics Analysis help to block over 95% of spam mails. Customizable notificationoptions and spam mail report are provided for the administrators. Varied actions to spam mails include Delete, Deliver, Forward and Store in the quarantine. It also has built-in auto-training system to improve the spam emails identification substantially.

� Anti-Virus Protection:
Built-in dual virus scan engines can detect viruses, worms and other threats from email transfer and can scan mission-critical content protocols, SMTP and POP3 in real time to provide maximum protection. It provides customizable notification options and virus mail report for the administrators. Varied actions to virus mails include Delete, Deliver, Forward and Store in the quarantine.

� Anti-Virus for HTTP, FTP, P2P, IM, NetBIOS:
The CS-2001 can filter the virus from various protocols. The virus pattern can be updated automatically or manually.

� VPN Connectivity:
The CS-2001 supports several VPN features -- IPSec VPN, SSL VPN and PPTP server/client. The VPN Tunnel with DES / 3DES / AES encryption and SHA-1 / MD5 authentication provides secure network traffic over public Internet. VPN Wizard helps the administrators to configure VPN settings easily.

� SSL VPN:
SSL VPN allows users to easily establish VPN connections for transferring the data by SSL encryption via web browser without the need of any software or hardware installation.

� VPN Trunk:
VPN trunk function provides VPN load balance and VPN fail-over feature to keep the VPN connection more reliable.

� Content Filtering:
The CS-2001 can block network connection based on URLs, Scripts (The Pop-up, Java Applet, cookies and Active X), P2P (eDonkey, Bit Torrent, WinMX and more), Instant Messaging (MSN, Yahoo Messenger, ICQ, QQ, Skype and Google Talk) and Download / Upload. If there are update versions of P2P or IM software in client side, the CS-2001 will detect the difference and update the Content Filtering pattern to renew the filtering mechanism.

� IM Recording:
Built-in IM Recoding function can help you record and monitor the use of MSN and QQ messenger. This can prevent productivity losses from personal use and confidentiality breaches from information leaks.

� IDP(Intrusion Detection and Prevention):
Built-in IDP function can detect the intrusions and prevent the network from Hacker attacks, Anomaly Flow and Signatures from the Internet. The CS-2001 provides three kinds of the signatures to complete the intrusion detection system. Users can select to configure "Anomaly","Pre-defined" and "Custom" according to the current environment request.

� Policy-Based Firewall:
The built-in Policy-Based firewall prevents many well-known hacker attacks including SYN attack, ICMP flood, UDP flood, Ping of Death, and etc. The access control function specifies WAN or LAN users to use authenticated network services only on specified time.

� QoS:
Network packets can be classified based on IP address, IP subnet and TCP / UDP port number and offer guarantee of maximum bandwidth with three levels of priority.

� User Authentication:
Web-Based authentication allows users to be authenticated via web browser. User database can be configured on the CS-2001 and it also supports the authenticated database through external RADIUS, POP3 and LDAP server.

� WAN Backup:
The CS-2001 can monitor each WAN link status and automatically activate backup links when a failure is detected. The detection is based on the configurable target Internet address.

� Outbound Load Balancing:
The network sessions are assigned based on the user configurable load balancing modes including "Auto", "Round-Robin", "By Traffic", "By Session" and "By Packet". Users can also configure IP or TCP / UDP type of traffic and assign which one of the two WAN ports for connection.

� Inbound Load Balancing:
The CS-2001 provides the Inbound Load Balancing is provided for enterprises internal server to reduce the server loading and system crash risks in order to improve the server working efficiency.

� Multiple NAT:
Multiple NAT allow local ports to be set in multiple subnets and connect to the Internet through different WAN IP addresses.

� VLAN:
The CS-2001 provides IEEE 802.1Q Tagged VLAN and the VLAN groups which allows the administrator to install the network flexibly.

� High Availability:
The CS-2001 provides the High Availability function and the redundant system to keep the network traffic active when the device crash down.

硬件
接口	Undefined Ethernet port 4 x 10 / 100 / 1000Base-T RJ-45, Auto-Negotiation, Auto MDI / MDI-X
Console端口	1 x RS-232 (9600, 8, N, 1)
硬盘	500 GB
硬件看门狗	Auto reboot when detecting system fail
软件
管理	Web (English, Traditional Chinese, Simplified Chinese)
操作模式	DMZ_Transparent, DMZ_NAT, NAT
路由协议	Static Route, RIPv2, OSPF, BGP
并发会话	1,000,000
每秒新建会话	10,000
每日电邮容量（邮件大小1098字节）	2,000,000
防火墙性能	1.6Gbps incoming and outgoing
SSL VPN 性能	80Mbps
IPSec VPN的性能（采用3DES）	100Mbps
防火墙安全	? Policy-Based access control ? Stateful Packet Inspection (SPI) ? NAT / NAPT
多子网	? Max Supports max 64 multiple subnets. ? With VLAN id feature to assign multiple subnets ? VLAN trunk support
VPN 隧道（连接/配置）	200 / 1000
VPN 功能	? IPSec, SSL VPN, PPTP server and client ? DES, 3DES and AES encrypting ? SHA-1 / MD5 authentication algorithm ? Remote access VPN (Client-to-Site) and Site to Site VPN
IM记录	? QQ / MSN Account Manager ? Periodic Report Scheduling / Send report to e-mail ? IM Conversation logs and statistics chart
内容过滤	? URL Blocking ? Script Blocking (Popup, Java Applet, cookies and Active X) ? IM blocking (MSN, Yahoo Messenger, ICQ, QQ, Skype, Google Talk and more) ? P2P blocking (eDonkey, Bit Torrent, WinMX and more) ? Download and Upload blocking
IDP（入侵检测与防护）	? Anti-Virus for HTTP, FTP, P2P, IM, NetBIOS ? Automatic or manual update virus and signature database ? Anomaly: Syn Flood, UDP Flood, ICMP Flood and more ? Pre-defined: Backdoor, DDoS, DoS, Exploit, NetBIOS and Spyware ? Custom: User defined based on TCP, UDP, ICMP or IP protocol ? Yearly, Monthly, Weekly and Daily Report support
反垃圾邮件	? Inbound scanning for external and internal Mail Server ? Support Spam Fingerprint, Bayesian, Signature, RBL and Graylist filtering, checking sender account and IP to filter the spam mail ? Black list and white list support auto training system ? Action of spam mail: Delete, Deliver to the recipient, forward to an account and store in quarantine ? Yearly, Monthly, Weekly and Daily Report support
QoS	? Policy-Based bandwidth management ? Guarantee and maximum bandwidth with 3 priority levels ? Classify traffics based on IP, IP subnet, TCP / UDP port
用户认证	? Built-in user database with up to 500 entries ? Supports local database, RADIUS, POP3 and LDAP authentication
日志	? Traffic Log, Event Log and Connection Log ? Log can be saved from web, backup by e-mail or syslog server
会计报表	? Record Inbound and Outbound traffic�s utilization by Source IP, Destination IP and Service ? Backup Accounting Report for Outbound and Inbound traffic
统计	WAN Ports traffic statistic and policies statistic with graph display
其他	? Dynamic DNS ? NTP support ? Multiple Server load balancing ? Outbound / Inbound load balancing ? High Availability ? SNMP v1, v2, v3

订购信息
CS-2001	UTM Content Security Gateway
