| 硬件特性 |
| 电口 |
4 x 10/100Base-TX auto-negotiation
Auto MDI / MDI-X |
| POE供电端口 |
1 x PD (Port-1) |
| 支持光纤模块类型 |
Single / multi-mode (Varies on SFP) |
| 天线 |
2 x Detachable RP-SMA connector
2 x 5dBi SMA omni-directional antenna included in the package |
| 材质 |
IP30 metal case |

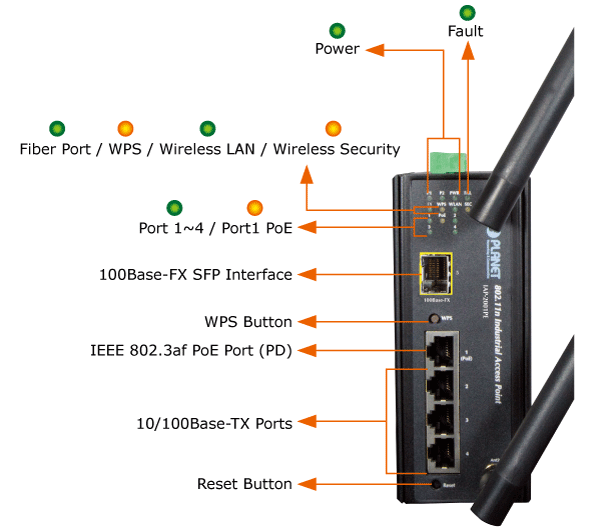

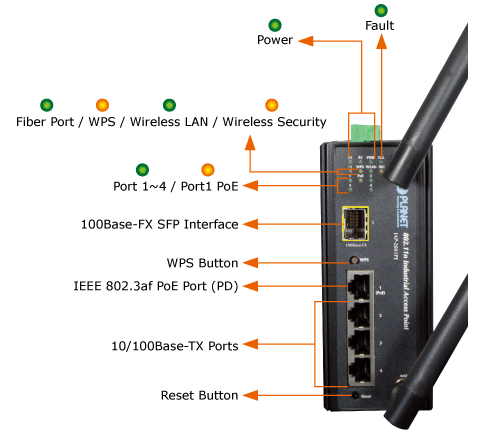

| LED指示灯 |
P1, P2, PWR, FAL, FX, WPS, WLAN, SEC, LAN1~4, PoE |
| 按钮 |
WPS button
Reset button |
| 尺寸 |
87.8 x 135 x 56 mm |
| 重量 |
871g |
| 电源要求 |
DC 12-48V / AC 24V |
| 安装方式 |
DIN rail kit and wall mount ear |
| 无线特性 |
| 标准 |
Compliant with IEEE 802.11b/g/n |
| Frequency Band |
2.4 to 2.4835GHz (Industrial Scientific Medical Band) |
| Modulation Type |
DSS with DBPSK, DQPSK, QPSK and CCK
OFDM with BPSK, QPSK, 16-QAM and 64-QAM |

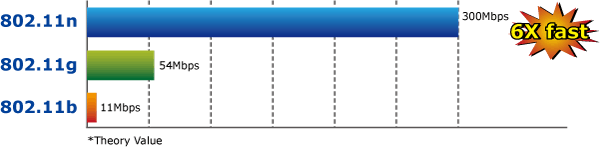

| 无线传输速率 |
802.11b: 1/2/5.5/11Mbps
802.11g: 6/9/12/18/24/36/48/54Mbps
802.11n: 14/29/43/58/87/116/130/144Mps in 20MHz
????30/60/90/120/180/240/270/300Mbps in 40MHz
|
| Opt. 信道 |
America / FCC: 2.414~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
Japan / TELEC: 2.412~2.484GHz (14 Channels) |
| RF输出功率 |
802.11b: 18 dBm
802.11g: 15 dBm
802.11n: 15 dBm
|
| 接收灵敏度 |
802.11b CCK 1.0Mbps: -94dbm
802.11b CCK 11.0Mbps: -91dbm
802.11g OFDM 6Mbps: -92dbm
802.11g OFDM 54Mbps: -76dbm
802.11n 20MHz MCS7: -72dbm
802.11n 40MHz MCS7: -70dbm |
| 管理功能 |

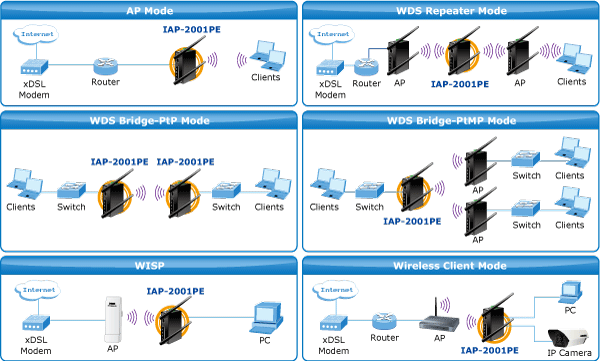

| Operation Mode |
Access Point, Client, Gateway, WDS Bridge, Repeater, WISP |
| Channel Width |
20MHz / 40MHz |
| Data Encryption Security |
64 bit / 128 bit WEP
WPA / WPA2
WPA-PSK / WPA2-PSK
802.1x Network Access Control |
| Management |
Web-based Configuration |
| Wireless Isolation |
Yes |
| 协议 |
| 协议/功能 |
Bridge and WISP mode
WDS and WPS
Static Routing and RIPv1/2
DMZ and Virtual Server
802.1D
802.1Q VLAN
QoS
SNTP
WMM
DHCP Server / Client
IGMP Proxy and DNS Proxy
UPnP and DDNS
SNMP |
| 管理方式 |
Web-based configuration |
| 标准一致性 |
| 国际标准 |
IEEE 802.11b/g and 802.11n Wireless LAN
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.1Q VLAN |
| 环境特性 |
| 温度与湿度 |
Operating: -10~60 degrees C, 5%~ 90% (non-condensing)
Storage: -20~70 degrees C, 0~95% (non-condensing) |
| Emission |
FCC, CE |
| Stability Testing |
IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration) |
