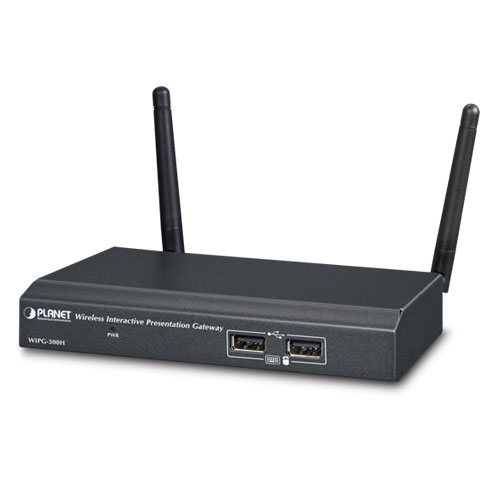

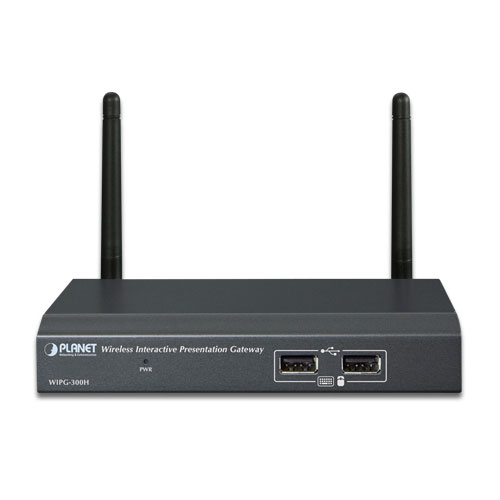

WIPG-300H

802.11n Wireless Interactive Presentation Gateway with 1080p Full HD

概述
应用场景
功能特性
产品规格
下载
相关产品

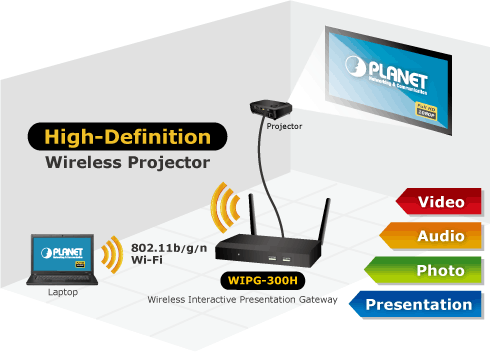

Wireless Interactive Presentation Gateway
PLANET WIPG-300H adopting IEEE 802.11n wireless technology brings smooth display through the 300Mbps high-speed wireless connection or the wired 100Mbps Fast Ethernet connection to project the screen of desktop PC, Mac or smartphone to make professional and interactive presentation.

Intelligent 1080p Full HD Wireless Projection

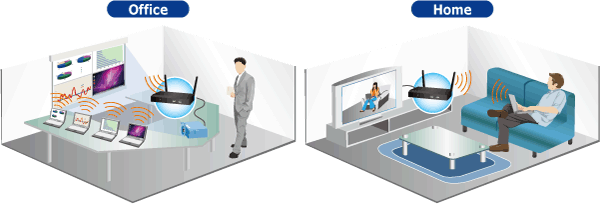

The WIPG-300H can optimize resolution based on the automatically transmitting device. It supports display with multiple resolutions and audio projection disregarding video format and resolution. Its HDMI output resolution can be increased to 1080p (1920 x 1080 pixels), making it a high-definition display perfect for presentation and video. Thus, the office presenter or the home users can easily share the multimedia on the big monitor / screen with others without the hassle of cabling.

Wireless Interactive Touch
Furthermore, the WIPG-300H adopts an interactive feature with IWB (Intelligent White Board) and Mobile apps which enable users to reverse control or synchronize screen display for different platforms. This helps the WIPG-300H achieve a real, full wireless presentation environment.

Mobile Applications
The WIPG-300H supports not only the Windows and Mac platforms, but also the presentation and screen mirroring through the iPad, iPhone, or the android mobile device. Apps for mobile devices working on the WIPG-300H are freely available at Google Play and Apple App Store.

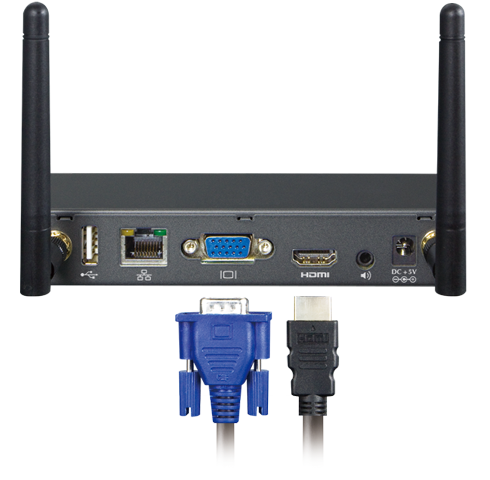

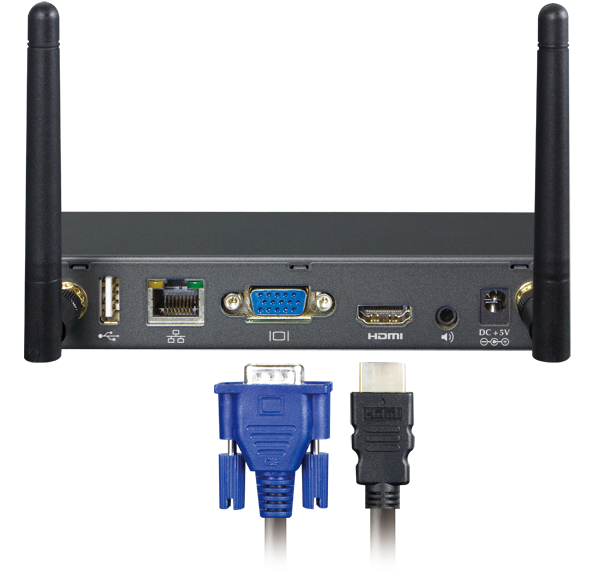

Flexible Projection via Dual Video Output Interfaces
To deliver a perfect presentation solution, the WIPG-300H offers choice of the two types of video output interfaces: the VGA or HDMI connector, which is compatible with most of the popular display devices. With the hardware decoding capability, the WIPG-300H can project high-definition sound film through wireless or wired LAN connections. It facilitates multiple users to freely display the presentations, images and videos via connecting to a projector or LCD TV without complex installation.

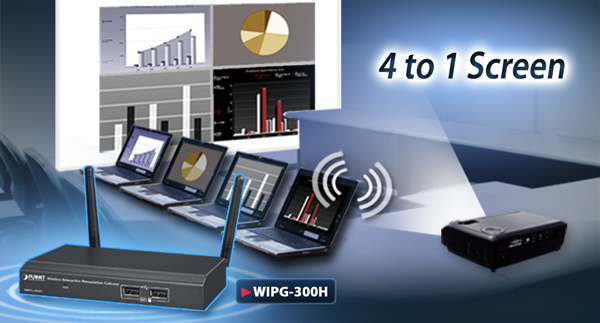

4-to-1 Split Screen Projection
With this 4-to-1 split screen feature, the WIPG-300H allows up to four PC / Laptop screens to be projected through one projector at the same time. Therefore, the participants can easily do side-by-side comparison from four PCs / laptops to make the presentation more efficient.

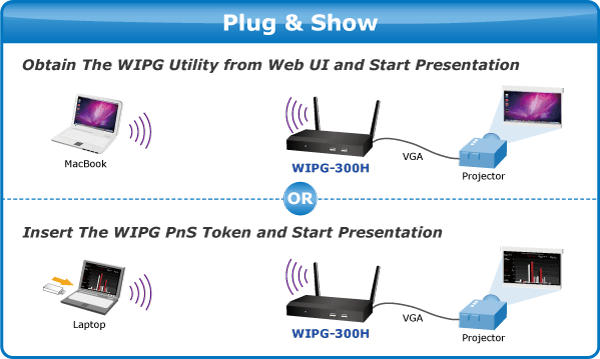

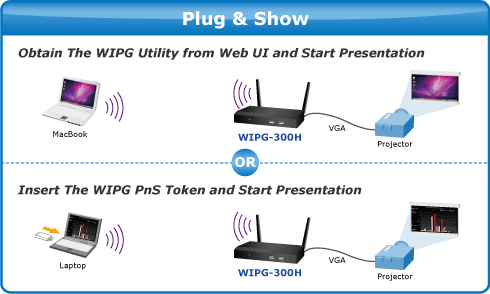

Easy to Use, Plug & Show
The embedded Windows-based utility enables the connected users directly download the utility from the WIPG-300H web UI or simply execute the utility from the created USB token. It offers the most convenient way for the new user to access the presentation in seconds. Just link the PC / Laptop to the WIPG-300H through wireless or Ethernet, the wireless projection can be performed via the connected projector easily.

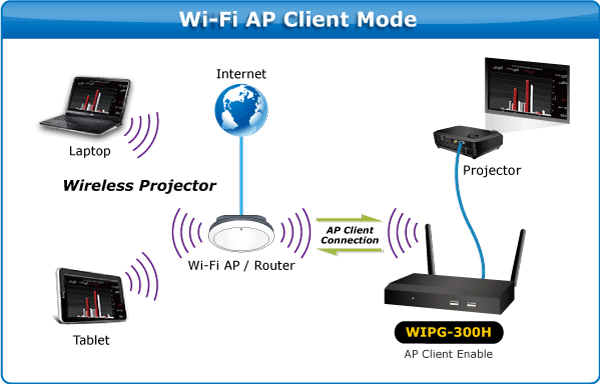

Internet / Intranet Connectivity through AP Client Mode
The WIPG-300H is also a Wireless Access Point. Its 10/100Mbps LAN port and 11n wireless performance ensure the participants in the meeting that they are able to access the Internet and Intranet all the time, even while wireless presentations are projecting. You just need to activate the AP-Client mode function to let the WIPG-300H join the existing Access Point through Wi-Fi. This feature provides the flexibility of wireless network deployment in enterprise environment.

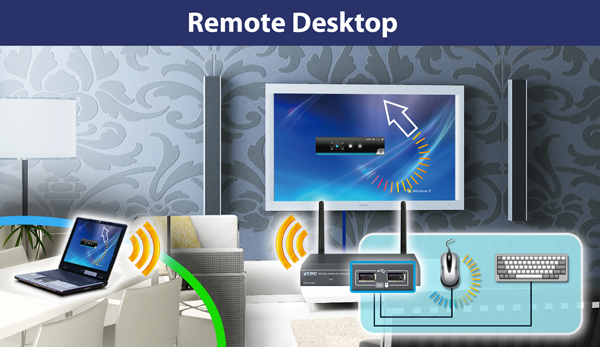

Remote Desktop
Plug standard USB keyboard or mouse into the USB port on the front panel of the WIPG-300H to enable you to control your PC remotely. You don�t have to stand still beside the PC or the WIPG-300H, thus delivering your presentation easily and freely.

硬件特性

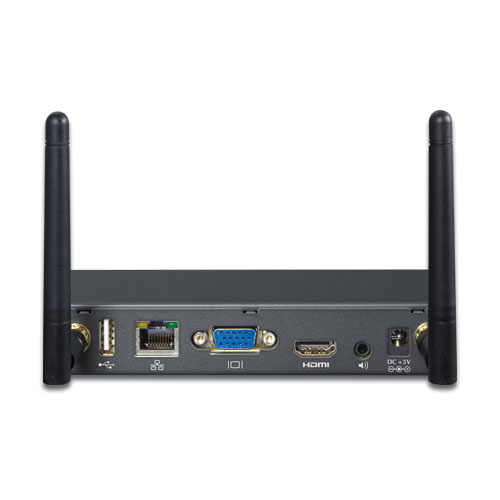

端口	Video: VGA Port: D-sub 15-pin female port, HDMI 1.4b Audio Out: 3.5mm stereo jack LAN: 10/100BASE-TX RJ45 Wireless LAN: IEEE 802.11n 300Mbps USB Port: 3 x USB 2.0, Type-A, 5V DC, 0.5A output
天线	Gain: 2 x 2dBi RP-SMA detachable antenna Orientation: Omni-directional
LED指示灯	Green: Power on Red: System POST (power on self-test) / firmware upgrade
材质	Metal
尺寸	150 x 59 x 25 mm
重量	243g
电源要求	External Power adaptor 5V DC input, 2.6A Multi-type swappable plug: US / EU / UK / AU
重置按钮	> 10 sec while booting: Reset to Factory Default
无线端口特性
标准	Compliant with IEEE 802.11n Backward compatible with IEEE 802.11b/g
频段	2.412 ~ 2.462GHz
无线数据传输速率	Up to 300Mbps
无线信道	2.412~2.462GHz (11 Channels)
接收灵敏度	802.11b: less than -80 dBm (11Mbps) 802.11g: less than -70 dBm (54Mbps) 802.11n: less than -61 dBm at HT40 MCS7 802.11n: less than -64 dBm at HT20 MCS7
无线安全	IEEE Standard 64/128 bit WEP / WPA / WPA2-PSK
操作模式	AP (Access Point) AP Client
视频显示
支持输出分辨率	VGA: SVGA (800x600) / XGA (1024x768) WXGA (1280x768) / WXGA (1280x800) WXGA (1360x768) / WXGA+ (1440x900) UXGA (1600x1200) HDMI: 720p (1280x720) / 1080i (1920x1080) / 1080p (1920x1080)
系统管理
协议	TCP/IP
IP 配置	Automatic: DHCP Manual: Static IP address
管理	Web-based configuration,SNMP
支持的Windows帐户权	Administrators Limited User Guest
支持的操作系统	Windows XP / Vista / 7 / 8 Mac OS X 10.7 and above Android 2.4 and above iOS 4.3 and above

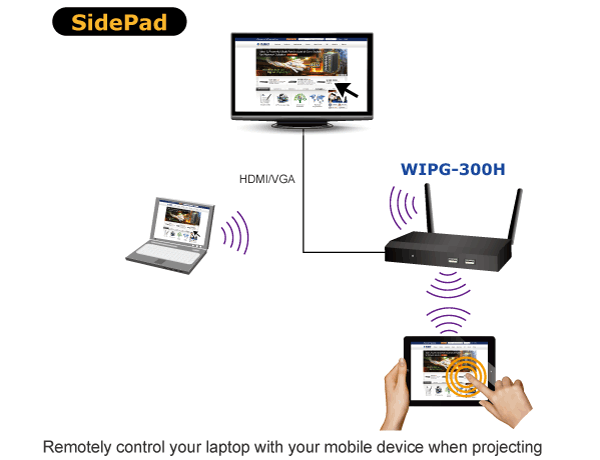

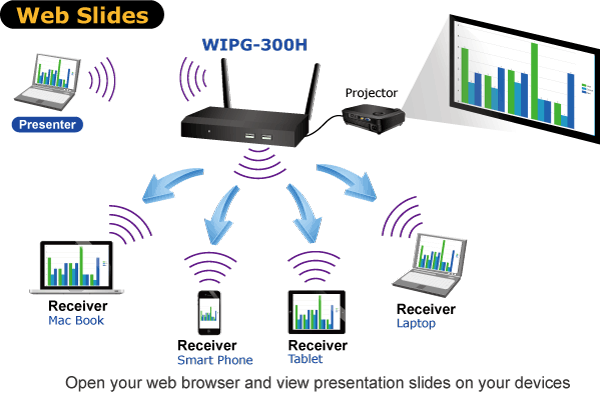

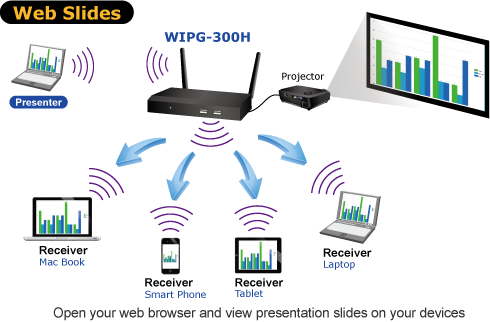

软件特性	4-to-1 split screen Audio Projection Remote Desktop Control Virtual Extended Desktop (Windows platform) Audio Latency Control Conference Control Gatekeeper Advanced Screen Capture (Windows platform) Webslides(max.90 concurrent users supported; 35 concurrent users recommended) SidePad MirrorOP Presenter
语言支持	English Traditional Chinese Simplified Chinese Japanese Korean French
标准一致性
IEEE 标准	IEEE 802.11n (2T2R, up to 300Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX
环境
温度	Operating: 0 ~ 40 degrees C Storage: -10 ~ 60 degrees C
湿度	Operating: 10 ~ 90% (non-condensing) Storage: 10 ~ 80% (non-condensing)

订购信息
WIPG-300H	802.11n Wireless Interactive Presentation Gateway
