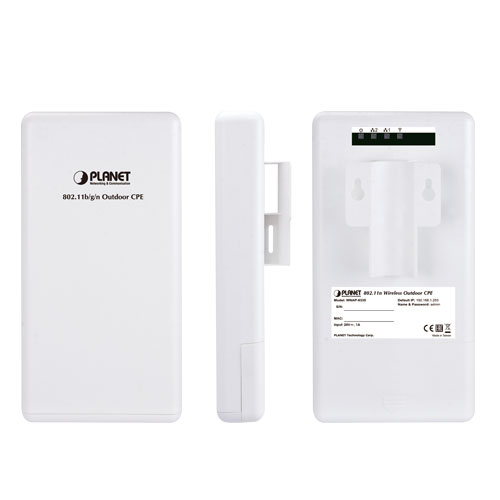

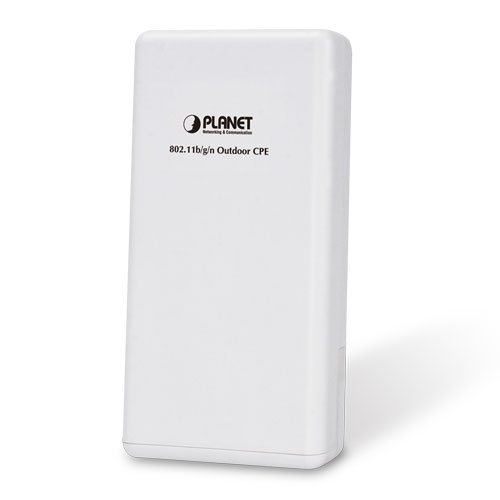

WNAP-6335

2.4GHz 300Mbps 802.11n Outdoor Wireless AP/Router (2 x RP-SMA Connector)

概述
应用场景
功能特性
产品规格
下载
相关产品

Faster Speed and Longer Distance
Adopting IEEE 802.11n advanced MIMO technology, it provides high speed, reliable wireless network coverage, and incredible improvement in the wireless performance. As an IEEE 802.11b/g/n compliant wireless device, the WNAP-6335 is able to give stable and efficient wireless performance for long distance application, and with IEEE 802.11n standard and 2T2R MIMO technology, the WNAP-6335 can deliver data rate up to 300Mbps, six times faster than that of the normal 802.11g wireless device. With its adjustable output power up to 500mW and RP-SMA antenna connectors, it can directly connect with various high gain antennas to extend higher coverage for outdoor long-ranging application.

Designed for Various Requirements of Wireless LAN

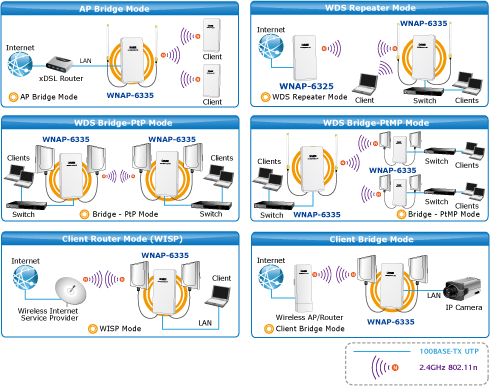

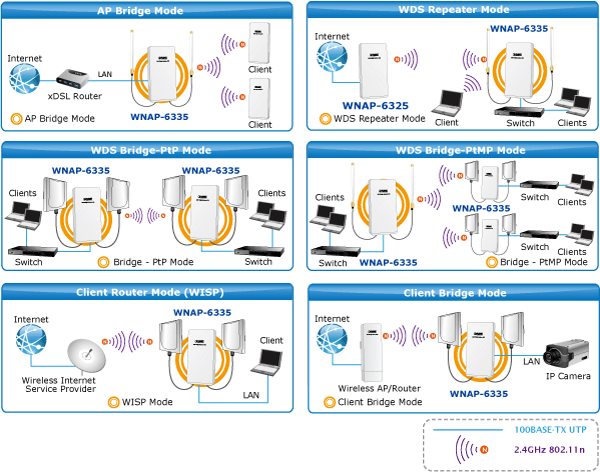

The WNAP-6335 supports multiple wireless communication connectivities, including AP/Router, WDS PtP, WDS PtMP and WISP modes, that meet various application requirements to enable users to gain more comprehensive experience. It also helps users to easily build wireless network and extend the wireless range of the existing wireless network.

Advanced Security and Rigorous Authentication
In aspect of security, besides 64/128-bit WEP encryption, the WNAP-6335 is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control are to consolidate the wireless network security and prevent unauthorized wireless connection.

Flexible and Reliable Outdoor Characteristics

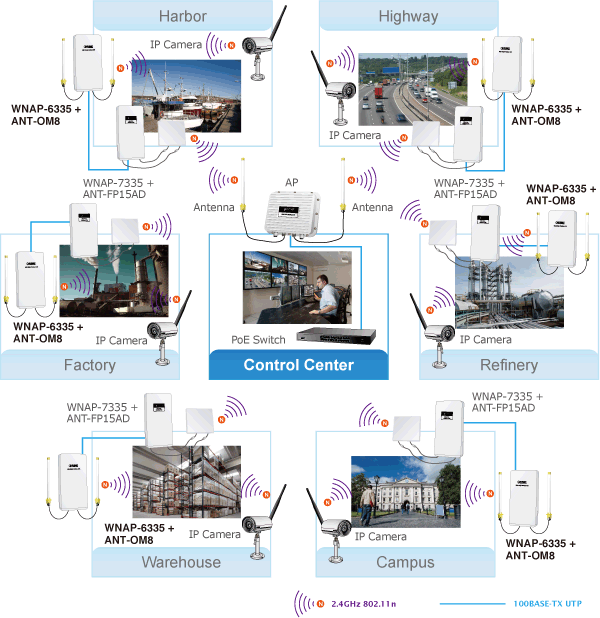

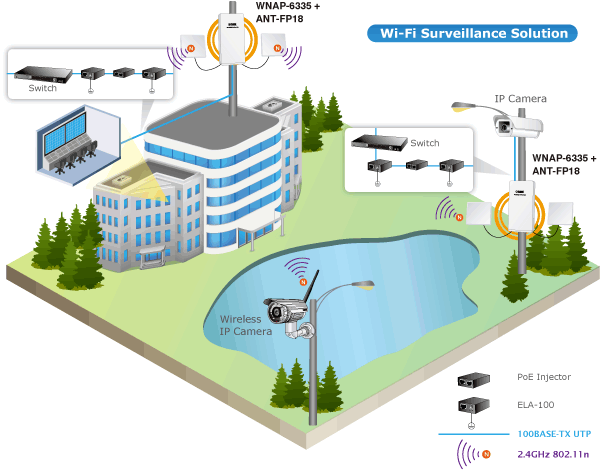

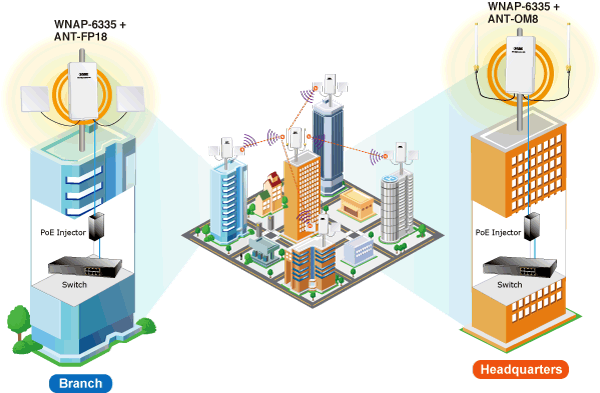

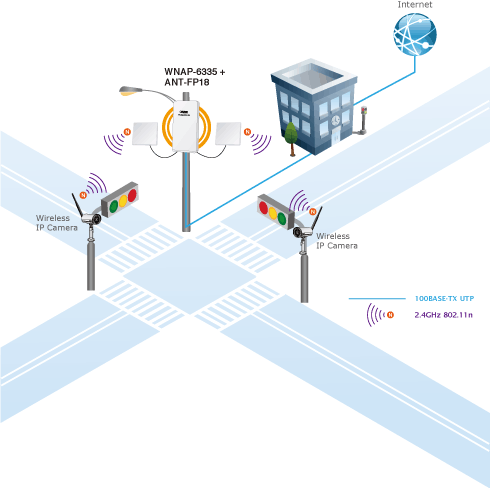

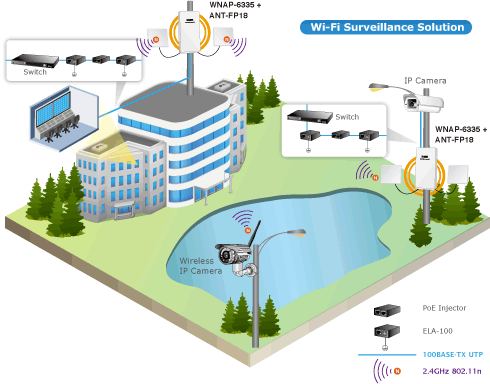

The WNAP-6335 is definitely suitable for such applications as IP surveillance, backhaul link of building to building and backbone of public service. Additionally, the self-healing and schedule reboot capability keeps connection alive all the time. Meeting the IP55 rating for outdoor UV resistant enclosure, the WNAP-6335 can perform normally under rigorous weather conditions, meaning it can be installed in any harsh, outdoor environments. With the proprietary Power over Ethernet (PoE) design, the WNAP-6335 can be easily installed in the areas where power outlets are not available.

Easy Deployment and Management
With user-friendly Web UI and the Planet Smart Discovery Utility, the WNAP-6335 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with the PLANET Dynamic DNS service and SNMP-based management interface, the WNAP-6335 is convenient to be managed and configured remotely.

硬件特性
标准支持	IEEE 802.11b/g/n IEEE 802.3 IEEE 802.3u IEEE 802.3x
Memory	64 Mbytes DDR SDRAM 16 Mbytes Flash
PoE	Passive PoE

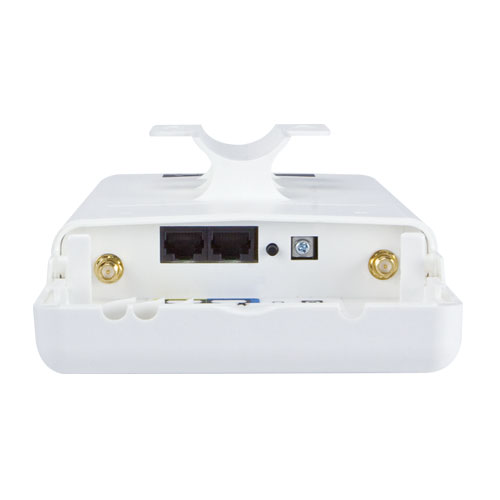

端口	Wireless IEEE802.11b/g/n, 2T2R PoE LAN (LAN 1): 1 x 10/100BASE-TX, auto-MDI/MDIX, passive PoE LAN 2: 1 x 10/100BASE-TX, auto-MDI/MDIX, passive PoE pass-through

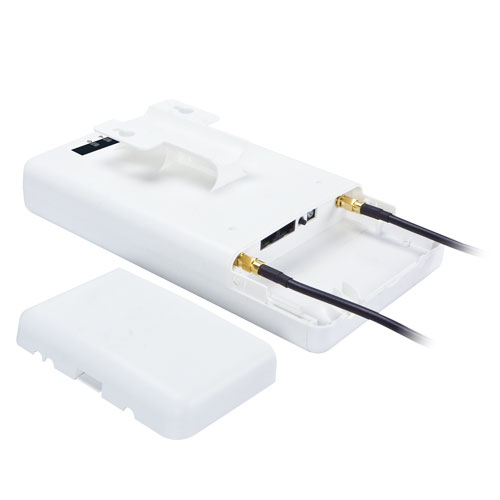

天线	Built-in RP-SMA antenna connectors
无线RF特性
无线技术	IEEE 802.11b/g IEEE 802.11n
数据传输速率	IEEE 802.11b: 1, 2, 5.5, 11Mbps IEEE 802.11g: up to 54Mbps IEEE 802.11n (20MHz): up to 150Mbps IEEE 802.11n (40MHz): up to 300Mbps
Media Access Control	CSMA/CA
调制	Transmission/Emission type: OFDM Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
频段	2.412GHz ~ 2.484GHz
操作信道	America/ FCC: 2.414~2.462GHz (11 Channels) Europe/ ETSI: 2.412~2.472GHz (13 Channels) Japan/ TELEC: 2.412~2.484GHz (14 Channels)
RF Output Power (Max.)	IEEE 802.11b: up to 26 � 1dBm IEEE 802.11g: up to 23 � 1dBm IEEE 802.11n: up to 22 � 1dBm
Receiver Sensitivity(dBm)	IEEE 802.11b: -94dBm IEEE 802.11g: -91dBm IEEE 802.11n: -89dBm
Output Power Control	12~27dBm
软件特性
LAN端口	Built-in DHCP server supporting static IP address distribution Supports 802.1d STP (Spanning Tree)
WAN端口	? Static IP ? Dynamic IP ? PPPoE
操作模式	? Bridge ? WISP
防火墙	NAT firewall with SPI (Stateful Packet Inspection) Built-in NAT server supporting virtual server and DMZ Built-in firewall with port/ IP address/ MAC/ URL filtering
无线模式	? AP/ Router ? Client ? WDS PTP ? WDS PTMP ? WISP
信道频宽	20MHz / 40MHz
无线技术	Enable to isolate each connected wireless client to let them cannot access mutually
加密类型	64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x
无线安全	Wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Enable/Disable SSID Broadcast
最大无线客户端	25
Max. WDS APs	8
最大.有线客户端	60
WMM	Supports Wi-Fi multimedia
QoS	Supports Quality of Service for bandwidth control
NTP	Network Time Management
Self Healing	Supports Schedule Reboot
管理	Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS, and SNMP
诊断工具	System Log, Ping Watchdog
Mechanical and Power
IP Level	IP55
材质	Outdoor UV Stabilized Enclosure
尺寸	127 x 63 x 254 mm
重量	366g

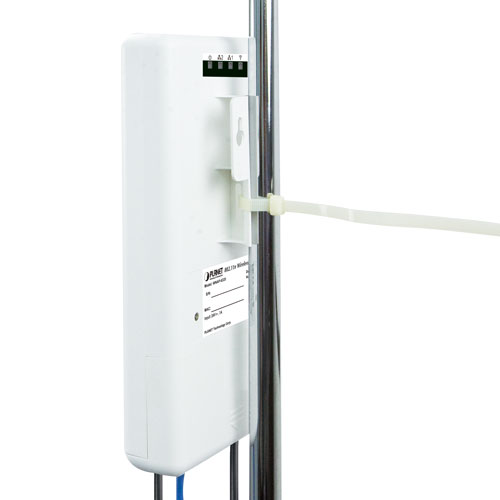

设备	Pole mounting or wall mounting
电源要求	LAN1 ? 24V DC, 1A/ Passive PoE ? Pin 4,5 V DC+ ? Pin 7,8 V DC- ? Pin 3 Reset
功率损耗	12W
环境与认证
工作温度	-20~70�C
工作湿度	10~95% non-condensing
法规	CE, FCC, RoHS
配件
标准配件	? WNAP-6335 x 1 ? 24V DC Passive PoE Injector & Power Cord x 1 ? Plastic Strap x 1 ? Quick Installation Guide x 1

订购信息
WNAP-6335	2.4GHz 300Mbps 802.11n Outdoor Wireless AP/Router (2 x RP-SMA Connector)

附件
CB-STP-25	25-meter STP Cat5 Cable
WL-SMA-0.6	0.6M RP-SMA(M) to N(M) Cable
WL-SMA-6	6M RP-SMA(M) to N(M) Cable
WL-N-10	10-meter N-male (male pin) to N-female (female pin) Extension Cable
ANT-OM8	8dBi Omni-directional Antenna
ANT-OM15	2.4GHz 15dBi Omni-directional Antenna
ANT-FP18	18dBi Flat-Panel Directional Antenna
ANT-FP9	2.4GHz 9dBi Flat Panel Directional Antenna
ANT-FP18	2.4GHz 18dBi Flat Panel Directional Antenna
ANT-SE18	2.4GHz 12-18dBi Adjustable Sector Antenna
ANT-YG13	2.4GHz 13dBi Yagi Directional Antenna
ANT-YG20	2.4GHz 20dBi Yagi Directional Antenna
ANT-GR21	2.4GHz 21dBi Grid Directional Antenna
WL-LTNA	2.4/5GHz Lightning Arrester (N-male to N-female)
