| 硬件特性 |
| Standard Support |
IEEE802.11b/g
IEEE 802.11n
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control |
| 芯片 |
Ralink RT3050 |
| Memory |
16 Mbytes DDR SDRAM
4 Mbytes Flash |
| 端口 |
Wireless IEEE 802.11b/g/n
LAN: 1 x 10/100Base-TX, Auto-MDI/MDIX
WAN: 1 x 10/100Base-TX, Auto-MDI/MDIX |
| 天线 |
Internal (Default): 12dBi directional antenna (Vertical-Polarization)
??? Horizontal: 60 degree
??? Vertical: 30 degree

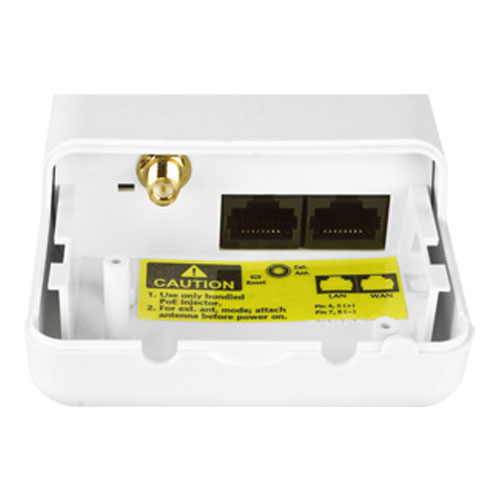

External (Option): RP-SMA type Connector
??? Switchable by Software
??? For External Antenna Mode, attach antenna before power on
|

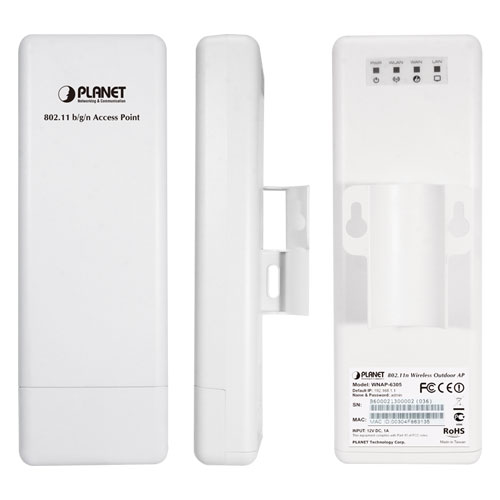

| Enclosure |
IP55 waterproof case |
| PoE |

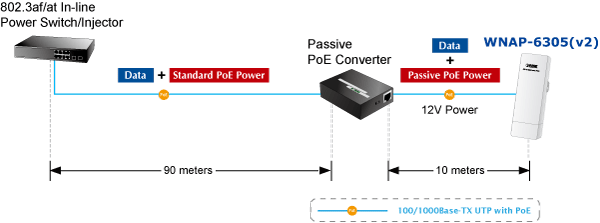

Passive PoE / 12V DC (Up to 40 meters)

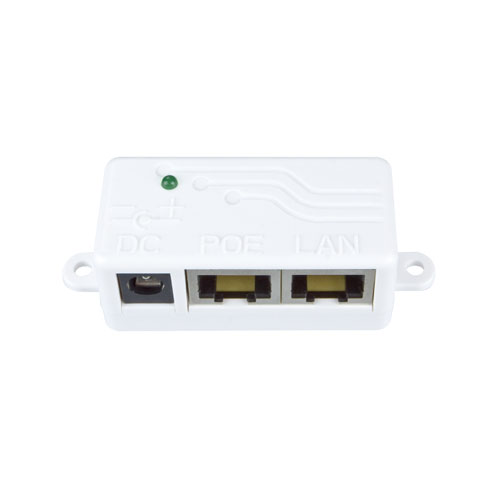

Reset Button on PoE Injector
LAN RJ-45 Pin Assignment: PIN 4,5(+), PIN 7,8(-) |
| 尺寸 |
225 x 77 x 60 mm |
| 重量 |
255g |
| 无线端口特性 |
| 频段 |
2.4~2.4835GHz |
| 调制 |
Transmission/Emission Type: DSSS / OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, QPSK, CCK
|
| 数据传输速率 |
802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
802.11n (20MHz): up to 72Mbps
802.11n (40MHz): up to 150Mbps |
| 选项.信道 |
America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels) |
| RF Output Power |
802.11b: 27 1dBm
802.11g: 26 1dBm
802.11n: 22 1dBm |
| 接收器灵敏度 |
802.11b: -93dBm
802.11g: -91dBm
802.11n: -89dBm |
| Media Access Control |
CSMA/CA |
| Output Power Control |
Range 1~100, default:100 |
| Power Requirements |
12V DC, 1A (switching) |
| 无线管理特性 |

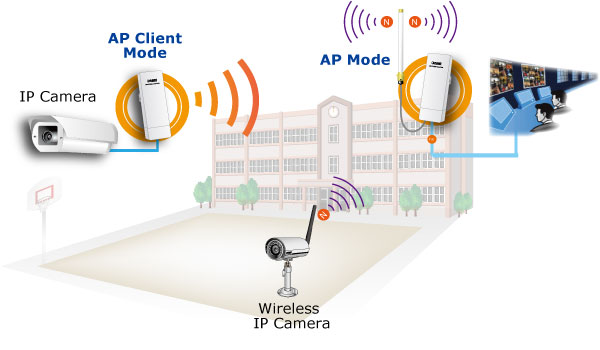

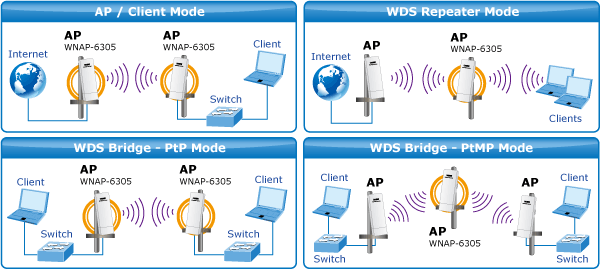

| 无线模式 |
??? AP
??? Client
??? WDS PtP
??? WDS PtMP
??? WDS Repeater (AP+WDS)
??? Universal Repeater (AP+Client)
|
| 信道频宽 |
20MHz / 40MHz |
| 加密安全 |
64/128-bits WEP
WPA, WPA-PSK
WPA2, WPA2-PSK
802.1X |
| 无线隔离 |
Able to isolate each connected wireless clients for independent access. |
| 无线安全 |
Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
WPS (Wi-Fi Protected Setup)
Enable/Disable SSID Broadcast |
| WPS (Wi-Fi Protected Setup) |
A protection mechanism prevents collisions among 802.11b/g modes |
| 最大 无线客户端 |
25 |
| Max. WDS AP |
4 |
| 软件特性 |
| LAN端口 |
Built-in DHCP server supporting static IP address distributing
Supports UPnP
Supports IGMP Proxy, DNS Proxy
Supports 802.1d STP - Spanning Tree Protocol
|
| WAN协议 |
??? Static IP
??? DHCP (Dynamic IP)
??? PPPoE
??? PPTP
??? L2TP
|
| VPN Passthrough |
??? PPTP
??? L2TP
??? IPSec
|
| 操作模式 |
??? Bridge
??? Gateway
??? Ethernet Converter (WISP)
|
| 防火墙功能 |
NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting Port Forwarding (Virtual Server), and DMZ
Built-in firewall with Port / IP address / MAC / URL filtering
|
| 最大.有线客户端 |
60 |
| NTP |
Network Time Management |
| 管理 |
Web UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS |
| 诊断工具 |
System Log |
| 环境与认证 |
| 工作温度&湿度 |
-20~70 degrees C
10~95% non-condensing
|
| 储存温度&湿度 |
-30~80 degrees C
5~95% non-condensing
|
| 法规 |
CE / RoHS |
