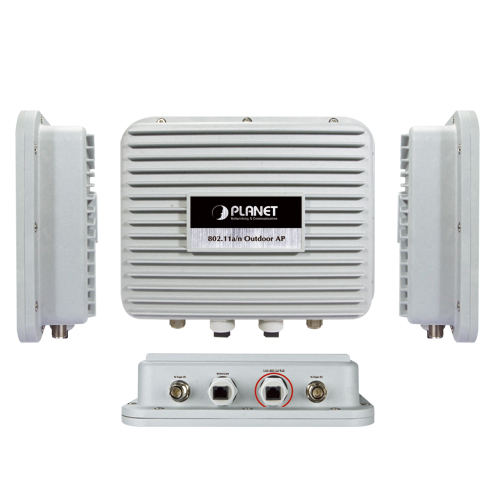

WNAP-7350

5GHz 300Mbps 802.11a/n 室外高功率无线AP (2 x N型接口)

概述

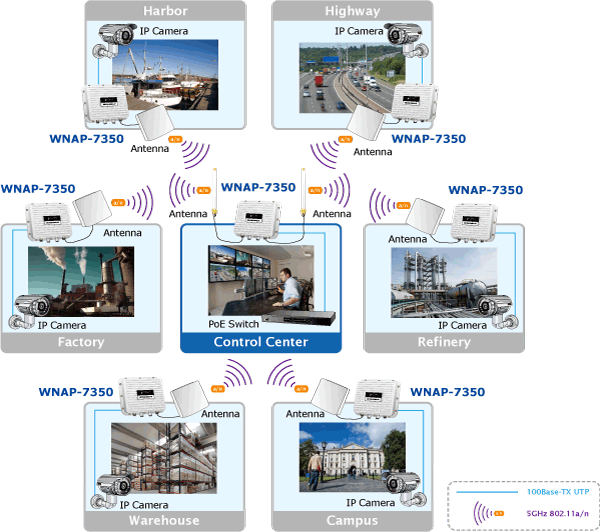

应用场景
功能特性
产品规格
下载
相关产品

High Power Outdoor Wireless Coverage

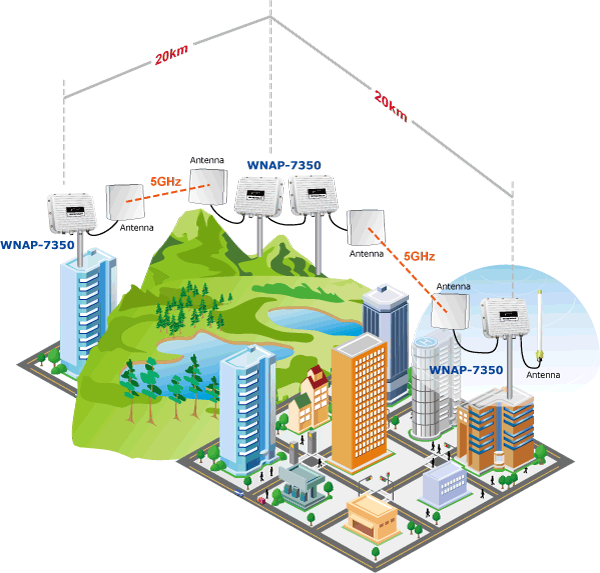

PLANET has launched the latest high power outdoor wireless LAN solution -- the WNAP-7350 300Mbps outdoor wireless AP. It provides higher transmit power, better performance, wider coverage and stable connection than standard outdoor wireless AP. As an IEEE 802.11a/n compliant wireless device, the WNAP-7350 is able to give stable and efficient wireless performance for long distance application. Being designed with IEEE 802.11n standard and 2T2R MIMO technology, the WNAP-7350 makes it possible to deliver six times faster data rate up to 300Mbps than the normal 802.11a wireless device. It also features adjustable output power up to 500mW to extend higher coverage in outdoor long range application.

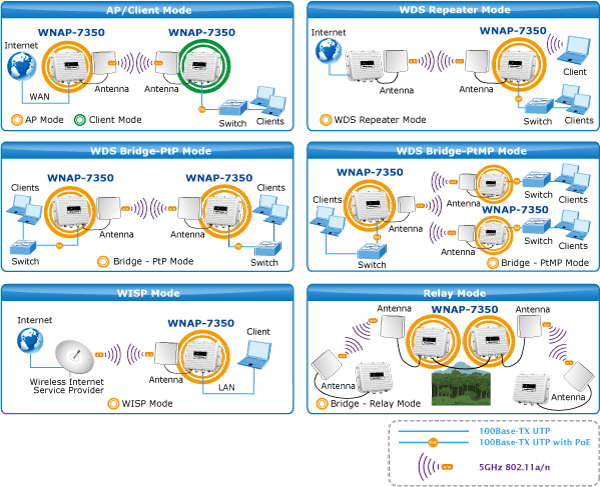

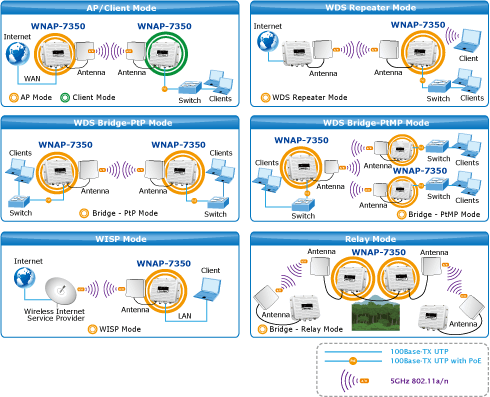

Multiple Operating and Wireless Modes

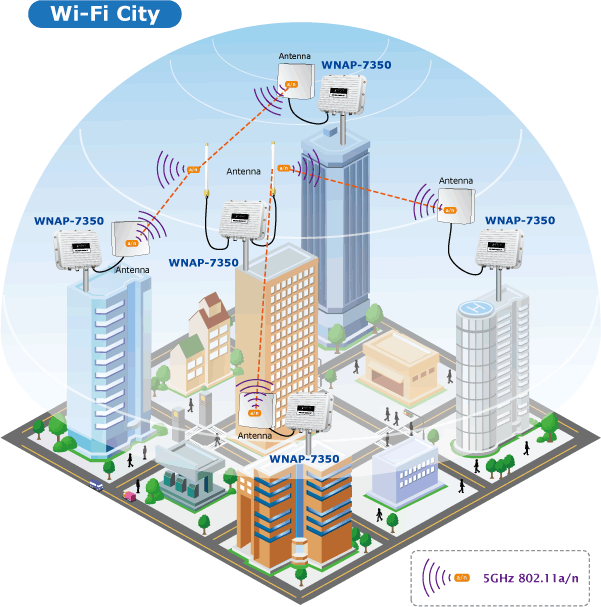

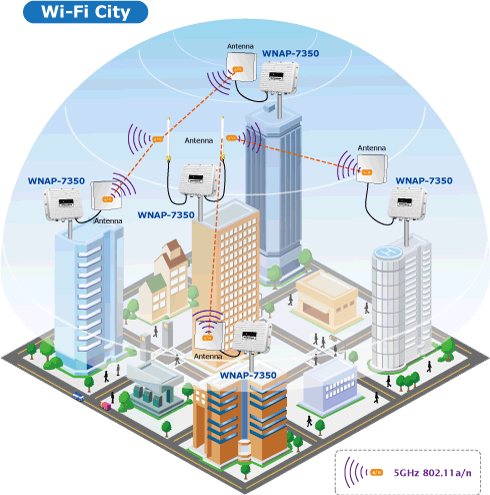

The WNAP-7350 supports multiple wireless communication connectivity (AP / Client CPE / WDS PtP / WDS PtMP / Repeater) allowing for various application requirements and thus it gives users more comprehensive experience when using the WNAP-7350. It helps users to easily build a wireless network and extend the wireless range of existing wireless network.
The WNAP-7350 also supports WISP mode, so CPE users could easily connect to Internet via WISP provider or connect to a wired network.

Advanced Security and Management
In aspect of security, besides 64/128- bit WEP encryption, the WNAP-7350 integrates WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate the wireless network security and prevent unauthorized wireless connection. To fulfill enterprise and various applications demand. The WNAP-7350 enhances security and management features such as providing multiple SSID support.

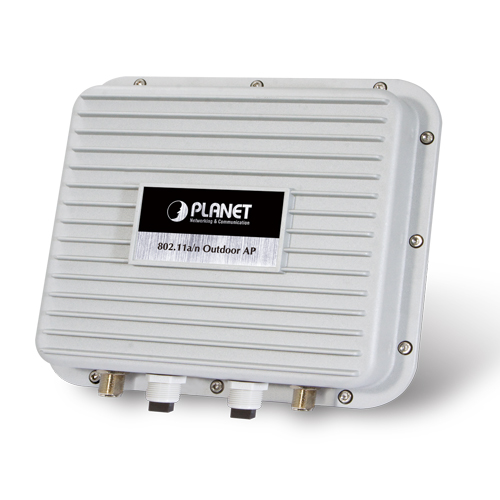

Perfect Solution for Outdoor Environment
The WNAP-7350 is perfectly suitable in outdoor environments and exposed locations. By designing with IP67 and aluminum rugged strong housing, the WNAP-7350 can perform normally under rigorous weather conditions including heavy rain, wind and snow. Moreover, the WNAP-7350 is rated to operate at the temperature from -30 to 75 degrees C, thus operating more stably than the general outdoor equipment. It is the best way to use the WNAP-7350 to build outdoor wireless access applications between buildings on campuses, business communities, rural areas and more.

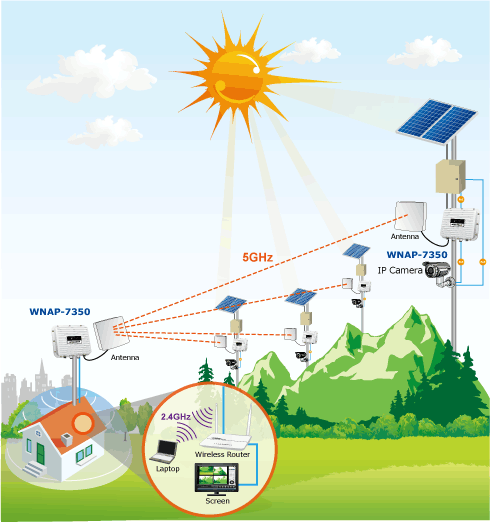

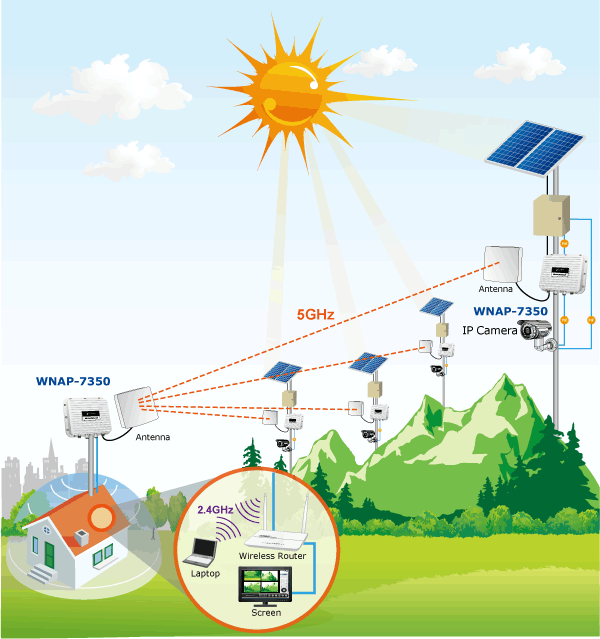

Flexible Deployment with PoE Feature
Compliant with IEEE 802.3af/at Power over Ethernet standard, the WNAP-7350 can be powered by PSE (Power Sourcing Equipment) via a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place which is difficult to reach. Furthermore, the WNAP-7350 is also suitable to be integrated with Solar Power PoE System to offer farther wireless service in remote areas. It enables the wireless LAN deployment to become more flexible and worry-free from the power outlet locations.

Easy Installation and Management
With user-friendly Web UI and step by step Setup Wizard, the WNAP-7350 is easy to install, even for users who never experience setting up a wireless network. Furthermore, with SNMP-based management interface, the WNAP-7350 is convenient to be managed and configured remotely.

硬件特性

Standard Support

IEEE 802.11a/n Wireless LAN
IEEE 802.11i Wireless Security
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af/at Power over Ethernet / PD

Memory

32 Mbytes DDR SDRAM
8 Mbytes Flash

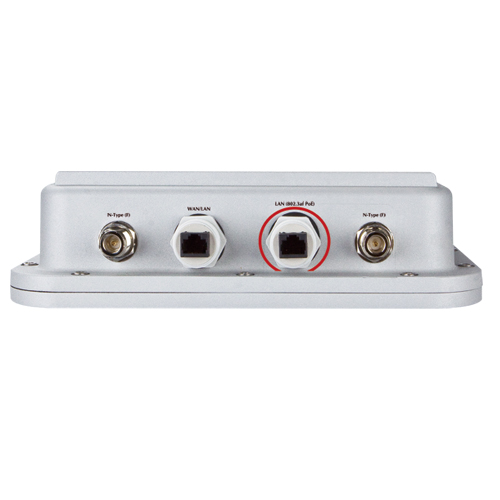

端口

Wireless IEEE 802.11a/n, 2T2R
LAN: 1 x 10/100Base-TX, Auto-MDI/MDIX, IEEE 802.3af/at PoE/PD port
WAN: 1 x 10/100Base-TX, Auto-MDI/MDIX

天线

N-type female connectors x 2

无线RF特性

无线技术

IEEE 802.11a
IEEE 802.11n

数据传输速率

IEEE 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbp

Media Access Control

CSMA / CA

材质

Transmission / Emission Type: OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM

频段

5.180GHz ~ 5.825GHz

操作信道

5.180GHz	CH36	5.580GHz	CH116
5.200GHz	CH40	5.600GHz	CH120
5.220GHz	CH44	5.620GHz	CH124
5.240GHz	CH48	5.640GHz	CH128
5.260GHz	CH52	5.660GHz	CH132
5.280GHz	CH56	5.680GHz	CH136
5.300GHz	CH60	5.700GHz	CH140
5.320GHz	CH64	5.745GHz	CH149
5.500GHz	CH100	5.765GHz	CH153
5.520GHz	CH104	5.785GHz	CH157
5.540GHz	CH108	5.805GHz	CH161
5.560GHz	CH112	5.825GHz	CH165

*The above 24 channels are defined in theory. The actual application will vary depending on the regulation in different regions and countries.

RF输入功率

IEEE 802.11a: 27 � 1dBm
IEEE 802.11n: 24 � 1dBm

接收灵敏度

IEEE 802.11a: -91dBm
IEEE 802.11n: -92dBm

输出功率控制

3~27dBm

软件特性

LAN端口

Built-in DHCP server supporting static IP address distributing
Supports 802.1d STP (Spanning Tree)

WAN端口

?? Static IP
?? Dynamic IP
?? PPPoE
?? PPTP
?? L2TP
?? IPSec

操作模式

?? Bridge
?? Gateway
?? WISP

防火墙

NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting Virtual Server and DMZ
Built-in firewall with Port / IP address / MAC / URL filtering

无线模式

?? AP
?? Client
?? WDS PTP
?? WDS PTMP
?? WDS Repeater (AP+WDS)

信道频宽

20MHz / 40MHz

无线技术

Enable it to isolate each connected wireless client from communicating with each other mutually.

加密类型

64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

无线安全

Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (WIFI Protected Setup )
Enable / Disable SSID Broadcast

Multiple SSID

Up to 2

最大无线客户端

Max. WDS AP

最大用户接入数量

WMM

Supports Wi-Fi Multimedia

QoS

Supports Quality of Service for bandwidth control

NTP

Network Time Management

管理

Web UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP

诊断工具

System Log, Ping Watchdog

Mechanical & Power

IP Rating

IP67

材质

Aluminum

尺寸

320 x 27.5 x 320 mm

重量

2.4kg

设备

Pole mounting or Wall mounting

电源要求

AP: IEEE 802.3af/at PoE / 48V DC input (PoE Injector included)
PoE Injector: 100~240VAC

功率损耗

7.68W

环境与认证

工作温度

-30~75 degrees C

工作湿度

10~95% non-condensing

法规

CE / RoHS

配件

标准配件

?? 48VDC 802.3af PoE Injector & power Cord x 1
?? Mounting Kit x 1
?? Waterproof RJ-45 Connector Kit x 2
?? Quick Installation Guide x 1
?? CD (User�s Manual, Quick Installation Guide) x 1

订购信息
WNAP-7350	5GHz 300Mbps 802.11a/n 室外高功率无线AP (2 x N型接口)

附件
CB-STP-25	25-meter STP Cat5 Cable
ELA-100	Ethernet Lightning Arrest Box
ANT-OM10A	5GHz 10dBi Omni-Directional Antenna
ANT-FP15AD	5GHz 15dBi Dual Polarity Flat Panel Directional Antenna
ANT-FP18A	5GHz 18dBi Flat Panel Directional Antenna
ANT-FP23A	5GHz 23dBi Flat Panel Directional Antenna
ANT-SE17A	5GHz 16.5dBi Sector Antenna
ANT-SE21A	5GHz 21dBi Sector Antenna
WL-NM-0.6	0.6-meter N-male (male pin) to N-male (male pin) Cable
WL-LTNA	2.4/5GHz Lightning Arrester (N-male to N-female)
