Easy Switching, Efficient Management

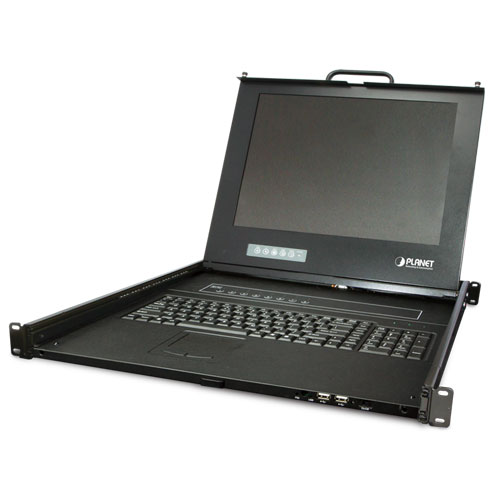

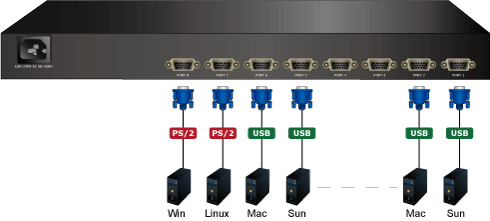

PLANET DKVM-1708 is the drawer KVM with single-rail console design that makes installation easy by just locking the rails into the rack and then place the KVM console along the rails. Simply use the supplied Combo VGA cable set to link the DKVM-1708 to the console ports of your KVM Switch, regardless of the connected port interface -- USB or PS/2.

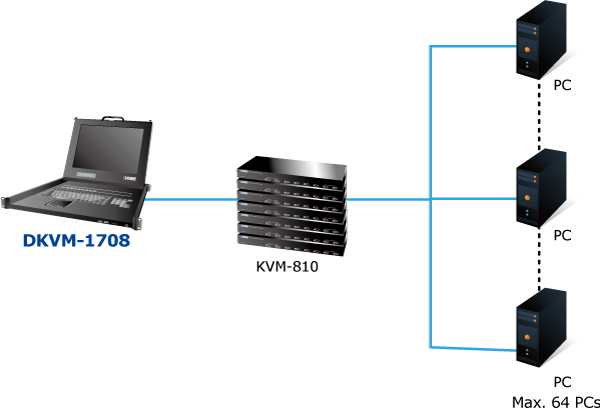

The combo-free KVM switch modules of the DKVM-1708 are loaded with rich features, such as one local console port, daisy chain capability, on screen display (OSD) menu, password security, searching PC server name, hot key control, push button and auto-scan control, complete keyboard and mouse emulation for simultaneous PC boot-up processes.
|
| |
Easy to Install

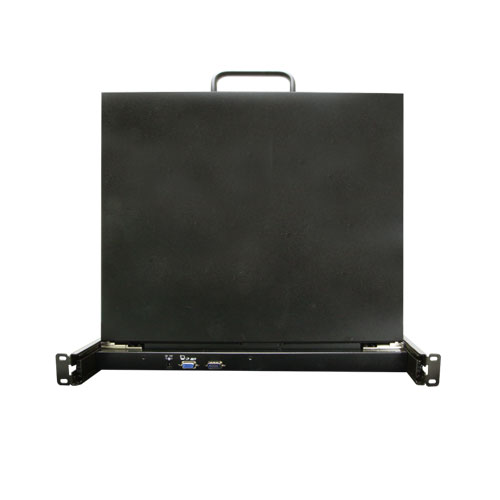

With the unique separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.
|
| |
|
| |
Modular KVM Switches

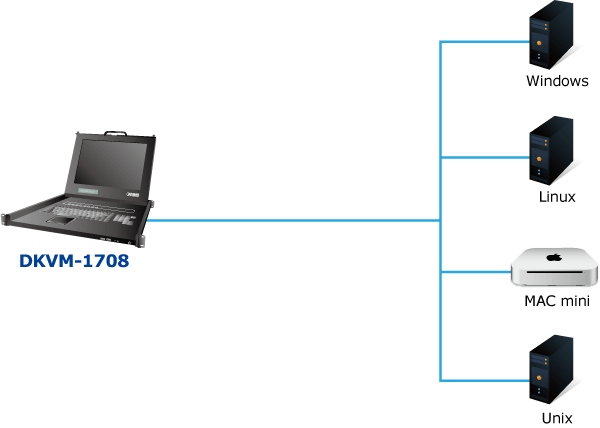

The DKVM-1708 also can be applied as a single port console with 8-port KVM switch.
|
| |
|
| |
Various OSD Languages
The DKVM-1708 provides multi-language OSD (on screen display) supporting English, French, Deutsch, Espanol, Traditional Chinese, Simplified Chinese and Japanese.
Powerful Mouse / Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The KVM fully supports various models of PS/2 mice manufactured by Logitech, Microsoft and IBM as well as compatible PS/2 mice of other brands. The KVM supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, PCs or their combination.
|
| |
