WNAP-7325

5GHz 300Mbps 802.11a/n Outdoor Wireless CPE (Built-in 14dBi Antenna)

概述
应用场景
功能特性
产品规格
下载
相关产品

Cost-effective Wireless Solution with Superior Performance

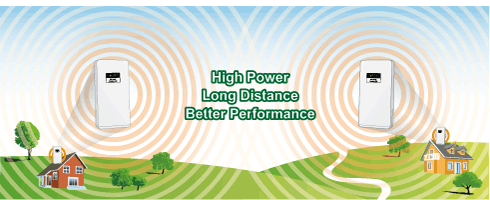

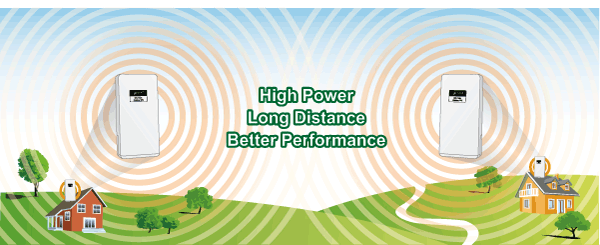

The WNAP-7325 is designed to provide a highly-stable, better performance and cost-effective wireless solution in outdoor backhaul deployment. It offers significant range and excellent throughput compared to the traditional 802.11a wireless device while using the same transmission power. Via the embedded 14dBi dual-polarization (vertical and horizontal) directional antenna, it provides good diversity coverage and better noise immunity effect, thus increasing the real performance reaching over 100Mbps at 5km of long distance connection.

Designed for Various Requirements

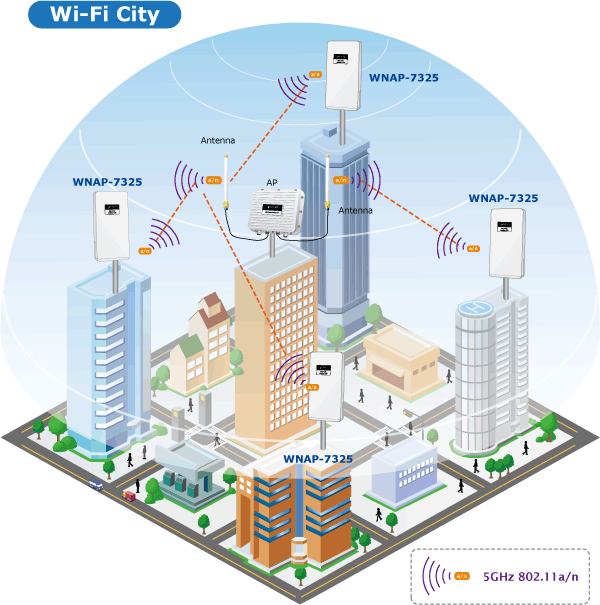

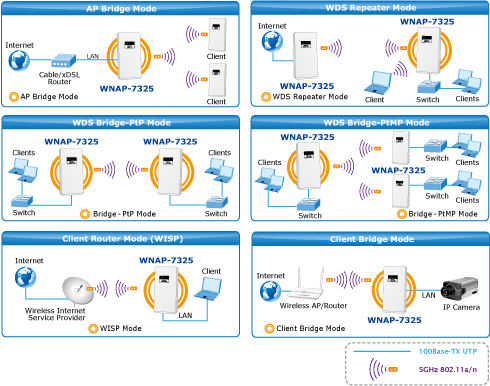

The WNAP-7325 is dedicatedly designed for WISP solution that provides CPE users with Internet access via the WISP provider in rural areas. Besides, it caters to various wireless communication connectivities (AP / Client / WDS PtP / WDS PtMP / Repeater), thus meeting users� application requirements.

Advanced Security and Rigorous Authentication
The WNAP-7325 supports WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the Wireless LAN network based on the ACL (Access Control List) that the administrator pre-established. In addition, with the multiple-SSID feature, you can set up different wireless networks. The WNAP-7325 can therefore serve as a virtual access point for segmented networks tailored to any industrial need.

Less Interference, Highly Reliable Connection

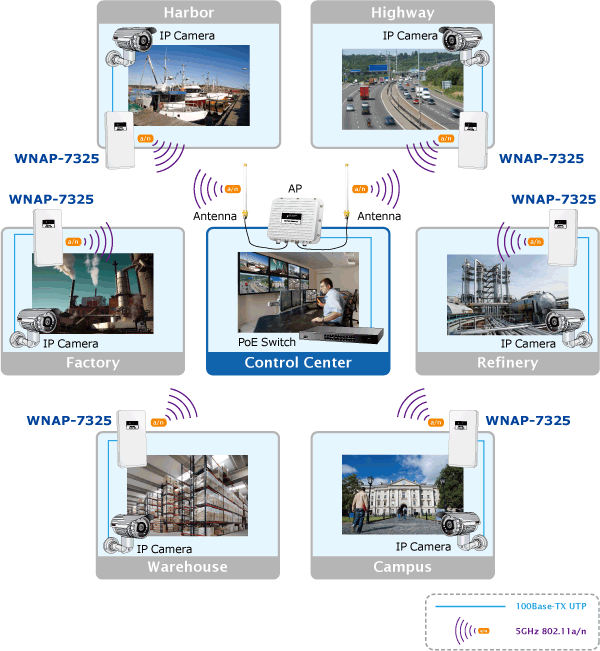

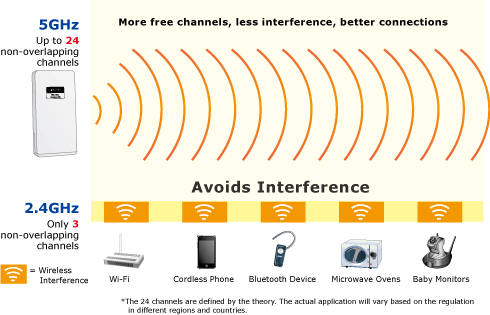

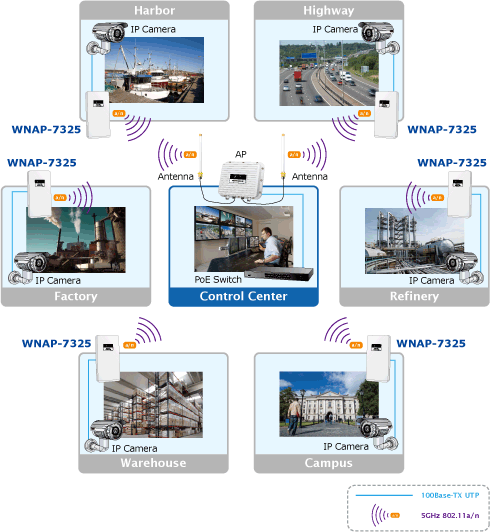

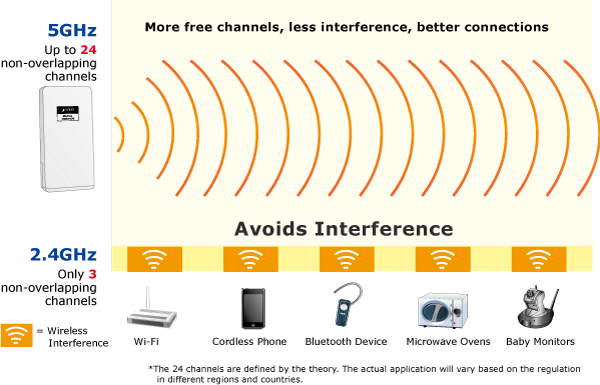

By using 5GHz frequency band, the WNAP-7325 can easily avoid much interference coming from the environment where there are a maximum of 24 non-overlapping channels. Therefore, the WNAP-7325 is definitely suitable for such applications as IP surveillance, backhaul link of building to building and backbone of public service. Additionally, the self-healing/schedule reboot capability keeps connection alive all the time.

Flexible and Reliable Outdoor Characteristics

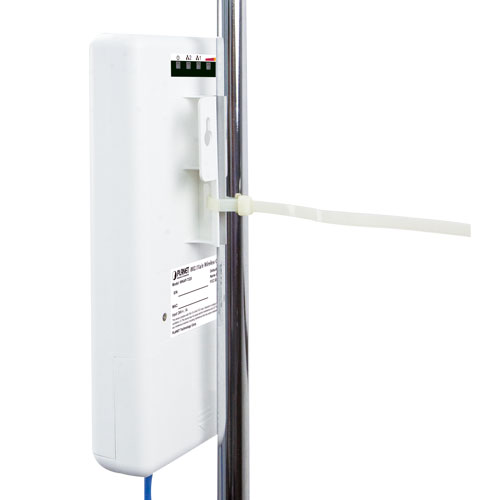

The WNAP-7325 is perfectly suitable to be installed in outdoor environments and harsh locations. With IP55 and outdoor UV resistance enclosure, the WNAP-7325 can perform normally under rigorous weather conditions. With the proprietary Power over Ethernet (PoE) design, the WNAP-7325 can be easily installed in the areas where power outlets are not available.

Easy Deployment and Management
With user-friendly Web UI and step-by-step setup wizard, the WNAP-7325 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with the Planet Smart Discovery Utility and SNMP-based management interface, the WNAP-7325 is convenient to be managed and configured remotely.

硬件特性
标准支持	IEEE 802.11a/n IEEE 802.3 IEEE 802.3u IEEE 802.3x
Memory	64 Mbytes DDR SDRAM 16 Mbytes Flash
PoE	Passive PoE

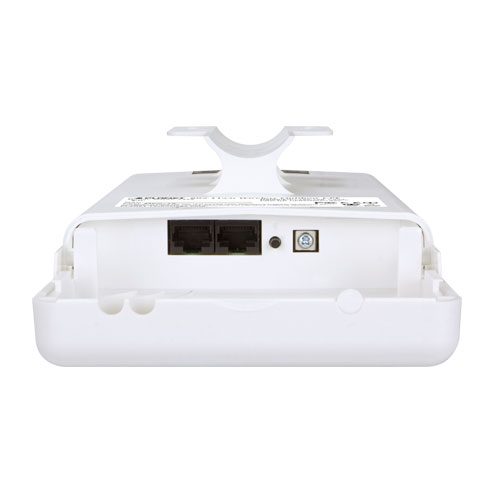

端口	Wireless IEEE802.11a/n, 2T2R PoE LAN (LAN 1): 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE LAN 2: 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE pass-through
天线	Built-in 14dBi dual-polarization antenna ?- Horizontal: 30 degrees ?- Vertical: 20 degrees
无线RF特性
无线技术	IEEE 802.11a IEEE 802.11n
数据传输速率	IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps IEEE 802.11n (20MHz): up to 150Mbps IEEE 802.11n (40MHz): up to 300Mbp
Media Access Control	CSMA/CA
调制	Transmission/Emission type: OFDM Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
频段	5.180GHz ~ 5.825GHz
操作信道	5.180GHz CH36 5.200GHz CH40 5.220GHz CH44 5.240GHz CH48 5.260GHz CH52 5.280GHz CH56 5.300GHz CH60 5.320GHz CH64 5.500GHz CH100 5.520GHz CH104 5.540GHz CH108 5.560GHz CH112 5.580GHz CH116 5.600GHz CH120 5.620GHz CH124 5.640GHz CH128 5.660GHz CH132 5.680GHz CH136 5.700GHz CH140 5.745GHz CH149 5.765GHz CH153 5.785GHz CH157 5.805GHz CH161 5.825GHz CH165 *The 24 channels are defined by the theory. The actual application will vary based on the regulation in different regions and countries.
RF Output Power (Max.)	IEEE 802.11a: up to 25 �1dBm IEEE 802.11n: up to 24 �1dBm
Receiver Sensitivity (dBm)	IEEE 802.11a: -94dBm IEEE 802.11n: -93dBm
输出功率控制	12~27dBm
功率损耗	12W
电源要求	LAN: 24V DC, 1A/ Passive PoE ???Pin 4,5 V DC+ ???Pin 7,8 V DC- ???Pin 3 Reset
软件特性
LAN端口	Built-in DHCP server supporting static IP address distribution Supports 802.1d STP (Spanning Tree)
WAN端口	? Static IP ? Dynamic IP ? PPPoE
操作模式	? Bridge ? WISP
防火墙	NAT firewall with SPI (Stateful Packet Inspection) Built-in NAT server supporting virtual server and DMZ Built-in firewall with port/ IP address/ MAC/ URL filtering
无线模式	? AP ? Client ? WDS PTP ? WDS PTMP ? * WDS Repeater (AP+WDS)
信道频宽	20MHz / 40MHz
无线技术	Enable to isolate each connected wireless client to let them cannot access mutually
加密类型	64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x
无线安全	Wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Enable/Disable SSID Broadcast
Multiple SSIDs	* Up to 8
最大无线客户端	25
Max. WDS APs	8
最大.有线客户端	60
WMM	Supports Wi-Fi multimedia
QoS	Supports Quality of Service for bandwidth control
NTP	Network Time Management
Self Healing	Supports Schedule Reboot
管理	Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS, and SNMP
诊断工具	System Log, Ping Watchdog
环境与认证
工作温度	-20~70�C
工作湿度	10~95% non-condensing
IP Level	IP55
法规	CE, FCC, DFS/TPC, RoHS
配件
标准配件	? WNAP-7325 x 1 ? PoE Injector x 1 ? Power Cord x 1 ? Plastic Strap x 1 ? Quick Installation Guide x 1
备注	* Means future firmware support

订购信息
WNAP-7325	5GHz 300Mbps 802.11a/n Outdoor Wireless CPE (Built-in 14dBi Antenna)
