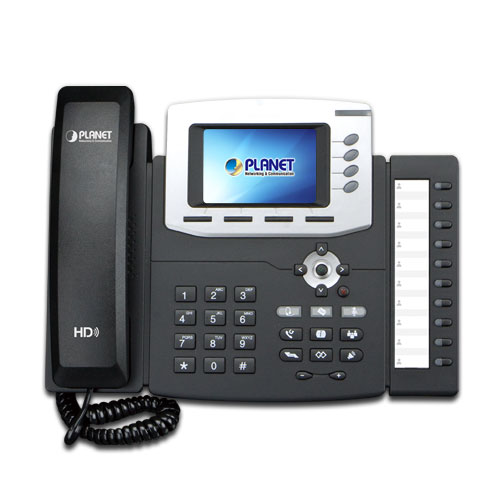

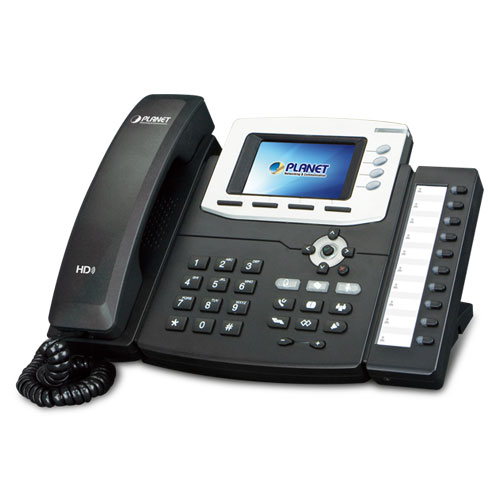

VIP-6040PT

Gigabit Color LCD HD PoE IP Phone (4-Line)

概述

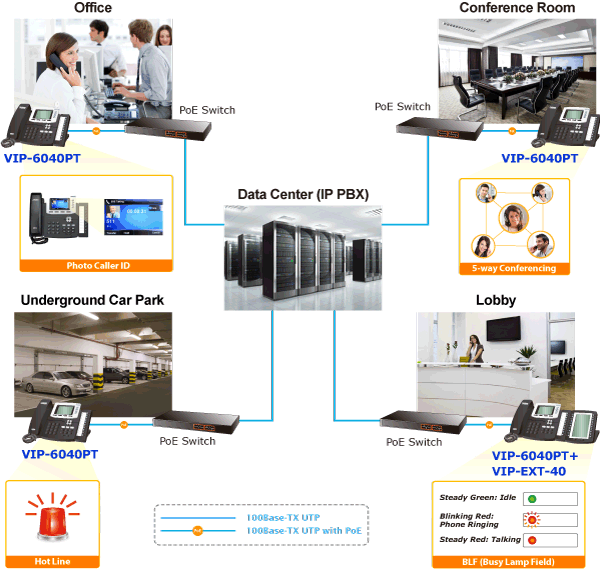

应用场景
功能特性
产品规格
下载
相关产品

Cost-effective, High-performance PoE VoIP Phone

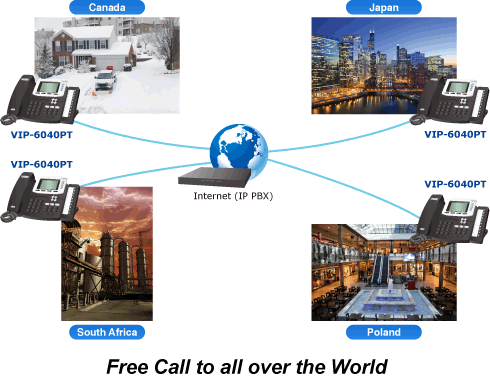

To build high-performance VoIP communications at a low cost, PLANET has launched a new member of its IP Phone family, the VIP-6040PT enterprise-class 4-Line PoE IP Phone. It complies with IEEE 802.3af PoE interface for flexible deployment. The VIP-6040PT, featuring voice and data system where the earlier feature can be included in new locations, makes it simple for enterprises. It helps enterprises to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long distance call charge would occur. The VIP-6040PT also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.

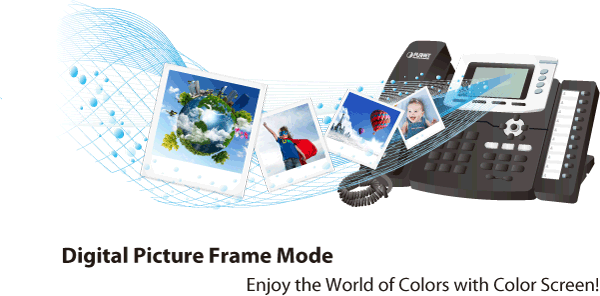

Color Screen

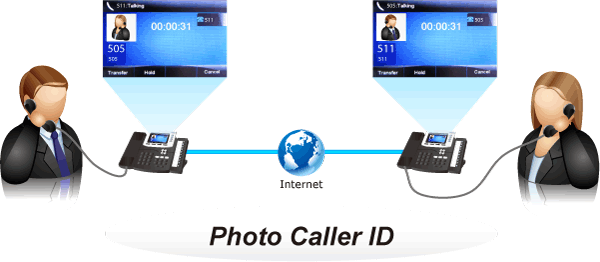

The VIP-6040PT is an innovative, enterprise-level, color IP phone that enables user to use the photo caller ID function (upload photo to identify the extension user). When in the sleep mode, the photo user wants to be shown on the color screen can be had automatically, thereby making communication colorful.

High-quality HD VoIP Voice
The VIP-6040PT delivers HD voice whose both hardware and software HD functions (HD speaker and G.722. HD codec) is the next generation of voice quality for telephony audio, making the quality of voice better than that (toll quality) of the standard digital telephony and come close to that of a room conversation. HD voice is transmitted in the audio frequency range of 50 Hz to 7 kHz or higher over telephone lines, resulting in higher quality voice and clearer communication.

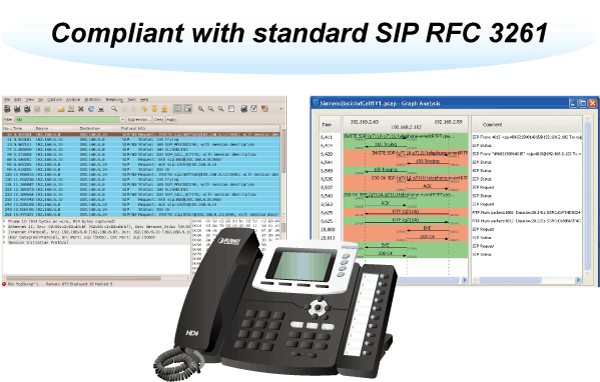

Standard Compliance
The VIP-6040PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-6040PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Enhanced, Full-Featured Business IP Phone
The VIP-6040PT is a full-featured enhanced business IP Phone that addresses the communication needs of the enterprises. It provides 4 voice lines and dual 10/100/1000Mbps Ethernet. Furthermore, the VIP-6040PT delivers user-friendly design containing a 480 x 320 color LCD.

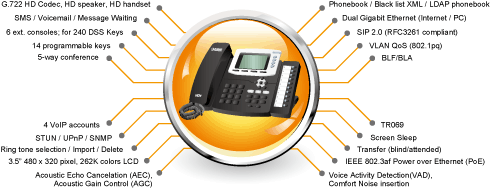

The VIP-6040PT supports all kinds of SIP-based phone features including 5-way conferencing, Transfer (blind/attended), Phonebook , Black list XML , LDAP phonebook, Screen Sleep, SMS / Voicemail / Message Waiting, Ring tone selection / Import / Delete, STUN, UPnP and SNMP, among others. Besides office use, the VIP-6040PT is also the ideal solution for VoIP service offered by Internet telephony service provider (ITSP).

Secure, High-quality VoIP Communication

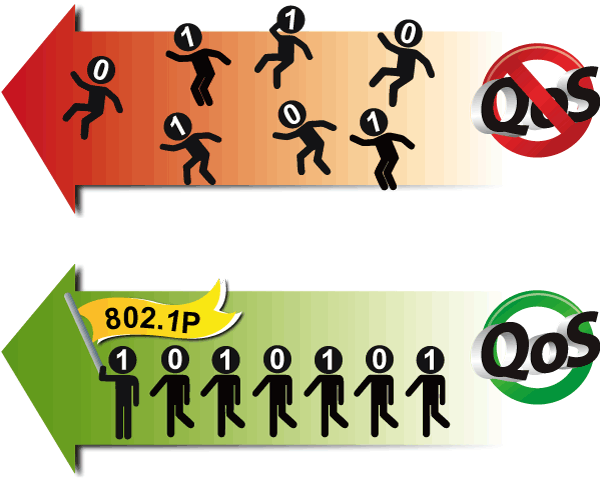

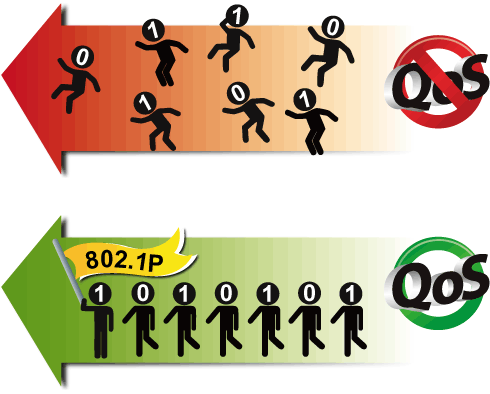

The VIP-6040PT can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1pq QoS (Quality of Service) and 802.1PQ VLAN tagging. Using voice and data VLAN can easily separate the data and voice, thus maintaining the best quality.

Professional Applications

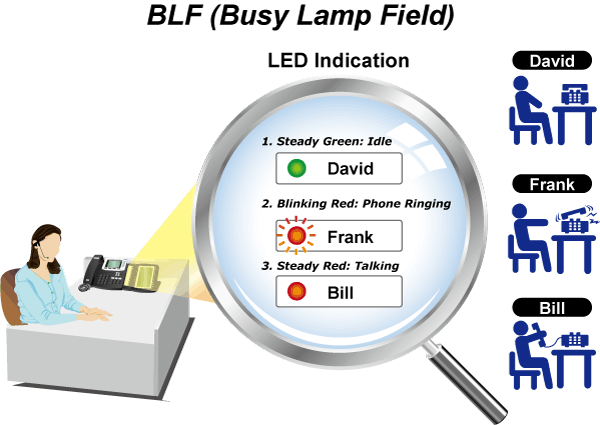

The VIP-6040PT supports Busy Lamp Field (BLF) function that, via the lights on the phone, enables users to easily identify the status of other phones which are connected to the same IP PBX, such as busy, idle, ringing, etc. The connected IP PBX must also support BLF feature. The BLF function is helpful for a receptionist on the front desk to route all incoming calls smoothly.

硬件特性
4线	Gigabit Color LCD HD PoE IP Phone (4-Line)
显示屏	3.5" TFT-LCD, 480 x 320 pixel, 262K colors
功能键	47 keys including 14 programmable keys
网络接口	2 x 10/100/1000Base-T RJ-45 Auto Negotiation, Auto MDI, Network port with 802.3af PoE support Handset: 1 RJ9 (4P4C) Headphone: 1 RJ9 (4P4C)
协议和标准
数据网络技术	MAC Address (IEEE 802.3) IPv4 (RFC 791) Address Resolution Protocol (ARP) DNS: A record (RFC 1706), SRV record (RFC 2782) Dynamic Host Configuration Protocol (DHCP) client (RFC 2131) Internet Control Message Protocol (ICMP) (RFC 792) TCP (RFC 793) User Datagram Protocol UDP (RFC 768) Real-time Protocol RTP (RFC 1889, 1890) Real-time Control Protocol (RTCP) (RFC 1889) Differentiated Services (DiffServ) (RFC 2475) Type of service (ToS) (RFC 791, 1349) VLAN tagging 802.1p Layer 2 quality of service (QoS) Simple Network Time Protocol (SNTP) (RFC 2030) Backward compatible with RFC 2543 Session Timer (RFC 4028) SDP (RFC 2327) NAPTR for SIP URI Lookup (RFC 2915)
语音网关	SIPv2, SDP (RFC 2327), RTP (RFC 1889,1890), RTCP RFC 2833 X-NSE Tone Events for SIP/RTP, AVT Tone Events for SIP/RTP
功能特性
语音编码器	HD wideband codec: G.722. HD codec, HD speaker, HD handset Full-duplex speakerphone with AEC G.711u/a-law, G.723.1, G.726, G.729A/B. DTMF (In-Band, RFC2833, SIP Info) Acoustic Echo Cancelation (AEC) Acoustic Gain Control (AGC) Voice Activity Detection (VAD) Comfort Noise insertion
安全	HTTPS Server / Client Transport Layer Security (TLS) SRTP (RFC3711), SIPS VLAN QoS (802.1pq)
电话功能	4 VoIP Accounts Menu-driven user interface, XML Idle Screen, Theme, Screen Sleep Call Hold, Call Waiting, Call Forward, Call Return, Redial, Call Transfer Caller ID display, DND, Auto-answer, 5-way Conferencing Mute, Speed Dial, SMS, Voicemail, Message Waiting Indication (MWI) LED, Call history BLF / BLA Tone scheme, volume control Ring tone selection / Import / Delete Broad and Deep Interoperability Soft keys programmable Phonebook, Black list XML/LDAP phonebook
协议	TCP, UDP, ICMP, RARP, ARP, DNS, NTP, SNTP, STUN, UPnP, SNMP Static / DHCP / PPPoE TFTP / DHCP / PPPoE client Telnet / HTTP / HTTPS server
管理	Auto-provision via FTP / TFTP / HTTP / HTTPS Upgrade via Browser / Phone / Auto-provision TR069
环境
电源要求	5V DC, 1.2 A IEEE 802.3af Power over Ethernet
工作温度	-10 ~ 50 degrees C
工作湿度	10 ~ 95% (non-condensing)
重量	980g
尺寸 (W x D x H)	268.5 x 240 x 40 mm
认证	CE, FCC

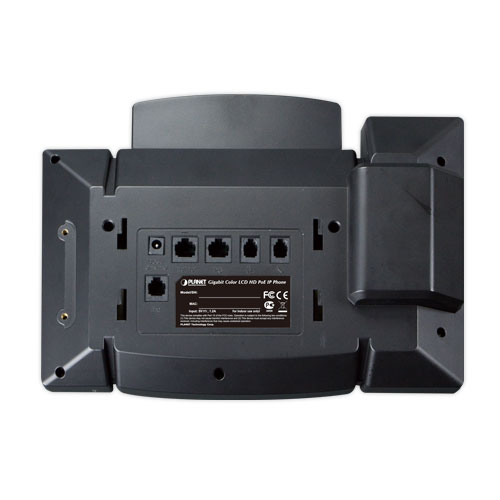

接口	Two 10/100/1000Base-T RJ-45 Ethernet ports Handset: RJ-9 connector Headphone: RJ-9 connector RJ-11 ext. connector (future feature) DC power jack

订购信息
VIP-6040PT	Gigabit Color LCD HD PoE IP Phone (4-Line)

附件

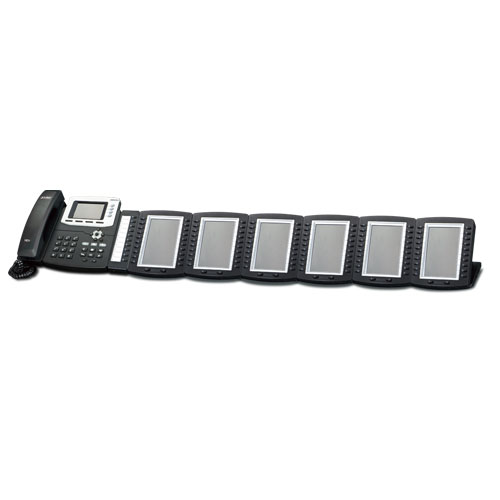

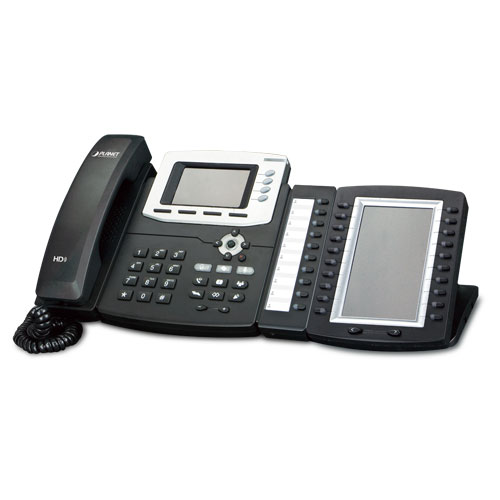

VIP-EXT-40	Color Expansion Module for VIP-6040PT
